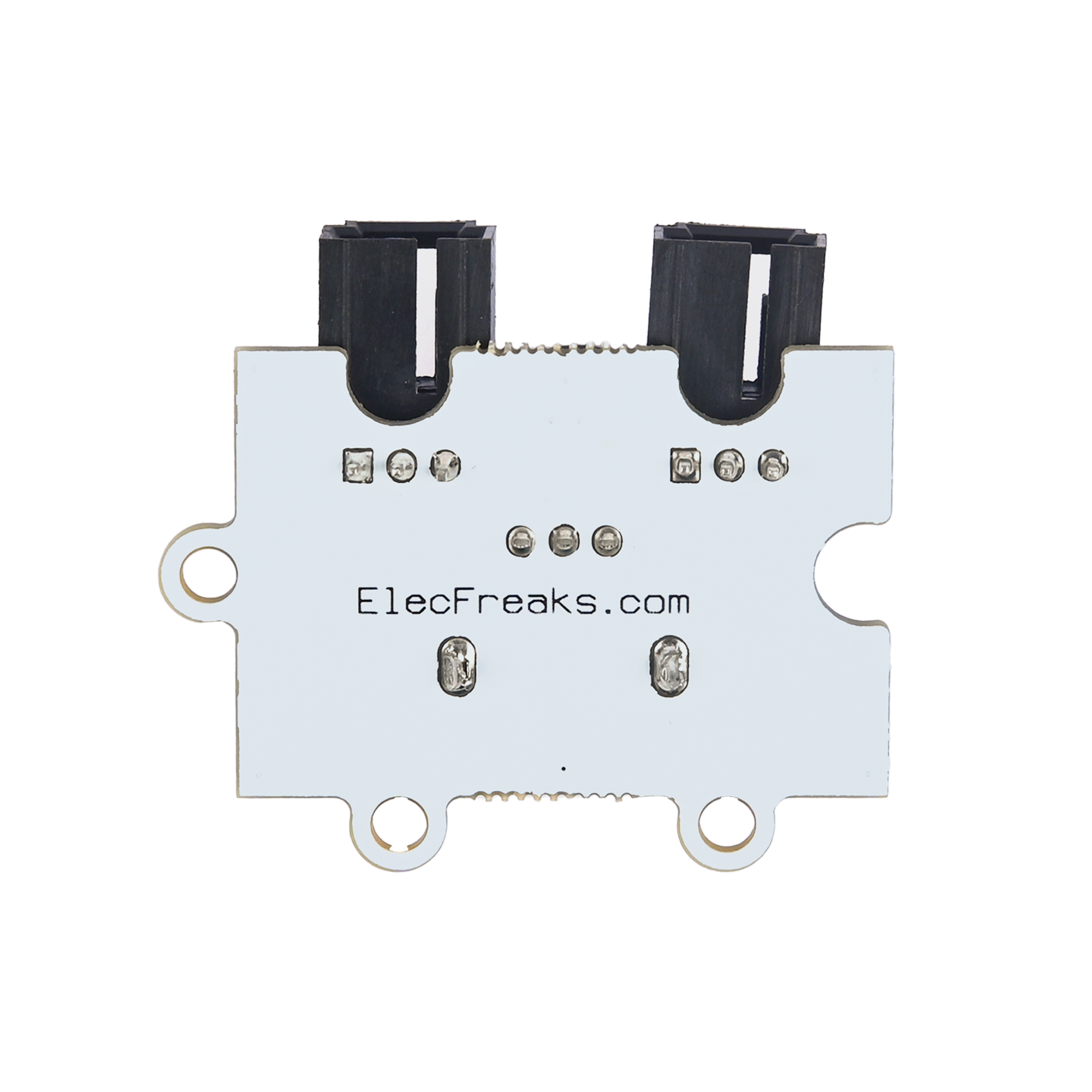

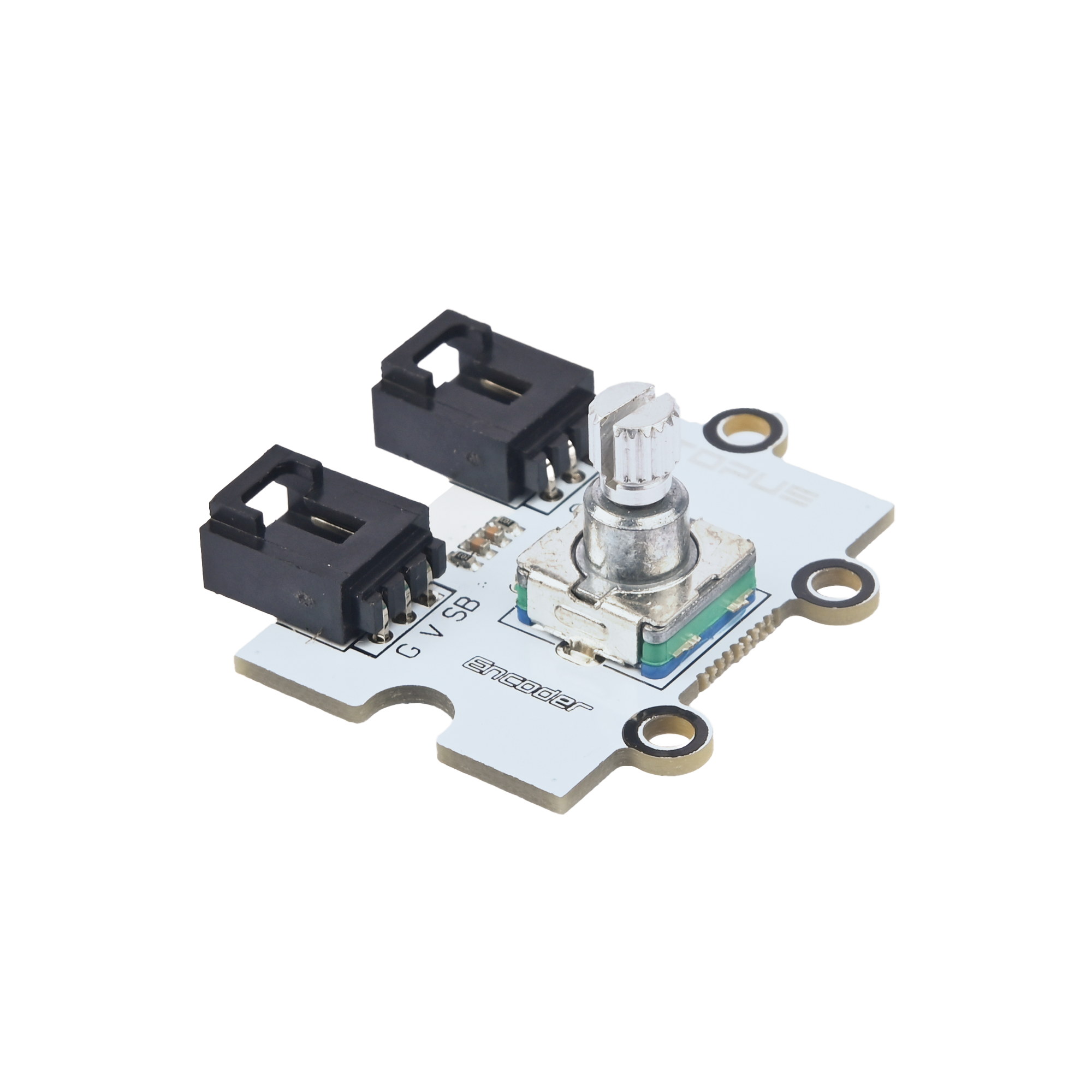

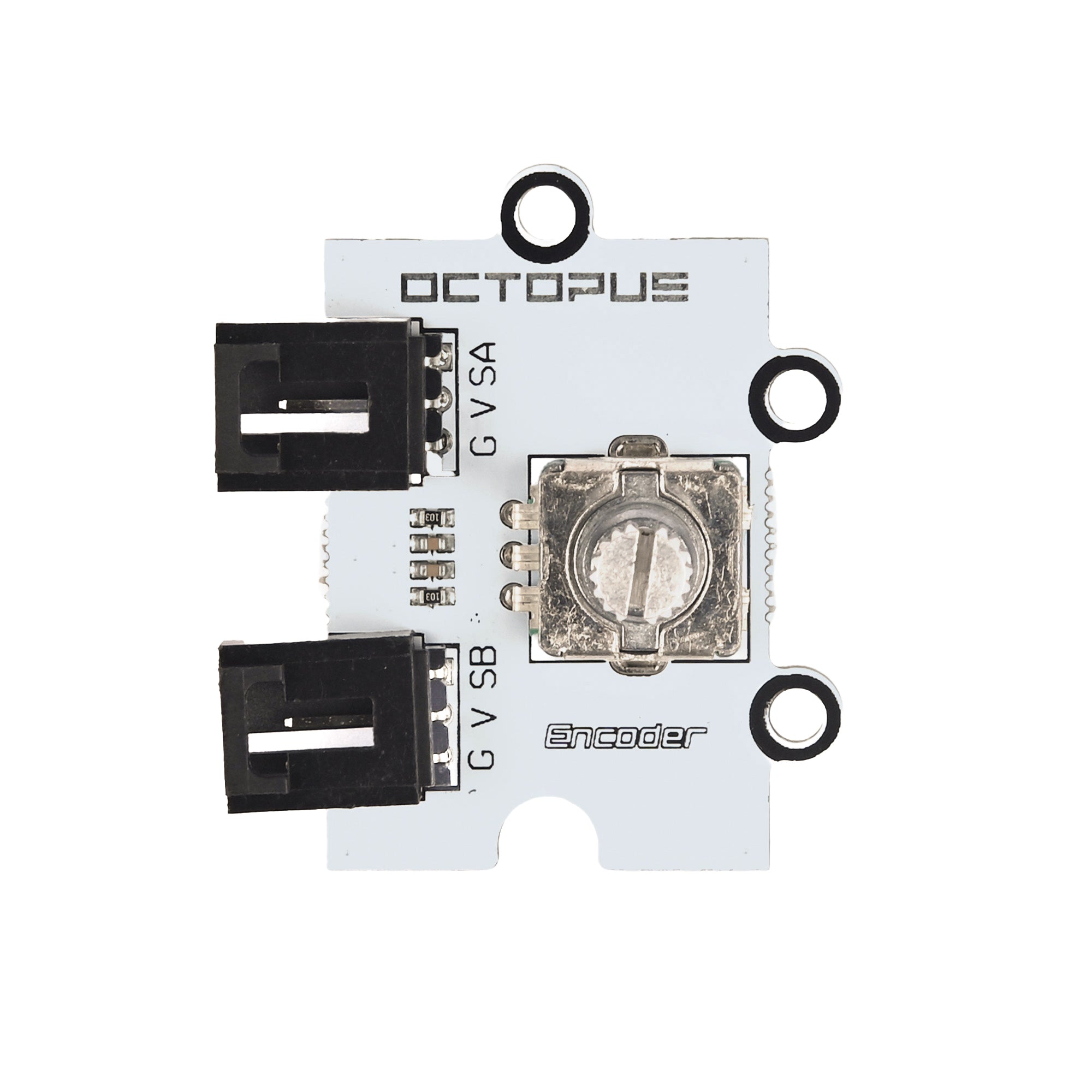

ELECFREAKS Octopus Rotary Encoder Brick

Octopus Electronic Bricks, you can use them to build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog, and I2C/Uart interfaces. These breadboard-less firm connections are prepared to extensive modules like potentiometers, sensors, relays, servos even buttons, just plug and play.

A rotary or "shaft" encoder is an angular measuring device. It is used to precisely measure the rotation of motors or to create wheel controllers (knobs) that can turn infinitely (with no end stop as a potentiometer has). Some of them are also equipped with a pushbutton when you press on the axis (like the ones used for navigation on many music controllers). They come in all kinds of resolutions, from maybe 16 to at least 1024 steps per revolution, and cost from 2 to 200 EUR or so.

DIMENSION

SPECIFICATION

The power supply needs: 5V
Interface type: Analog
Pin Definition: S-Sigal V-VCC G-GND
Wide detecting scope
Fast response and High sensitivity
Simple drive circuit
Stable and long life
Size: 38x27mm

PACKAGE LIST

RESOURCES

Schematic
Arduino Encoder
Arduino Project
bildr Tutorial
