Description
Wukong is a high integrated breakout board with multiple functions based on micro:bit, which has a similar size with the micro:bit with buzzer, servo and motor drivers on board. With a built-in 400mAh Li-ion battery pack and the on-board power controlling system, it supports fast charge with only 20 minutes for full filling that can operate for more than 40 minutes a time. The base board designs with standard 7x5 square bricks that can adapt perfectly to Lego.

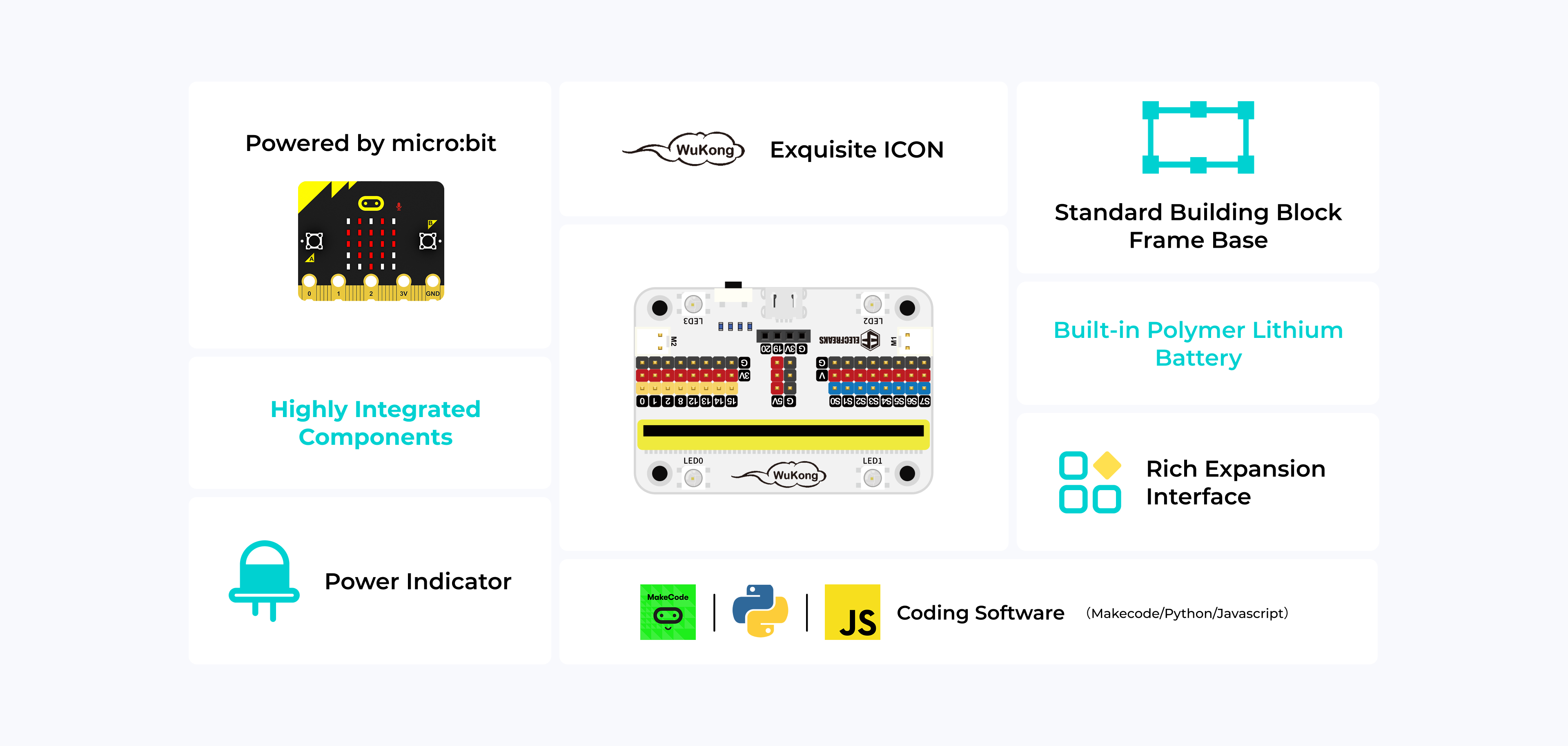

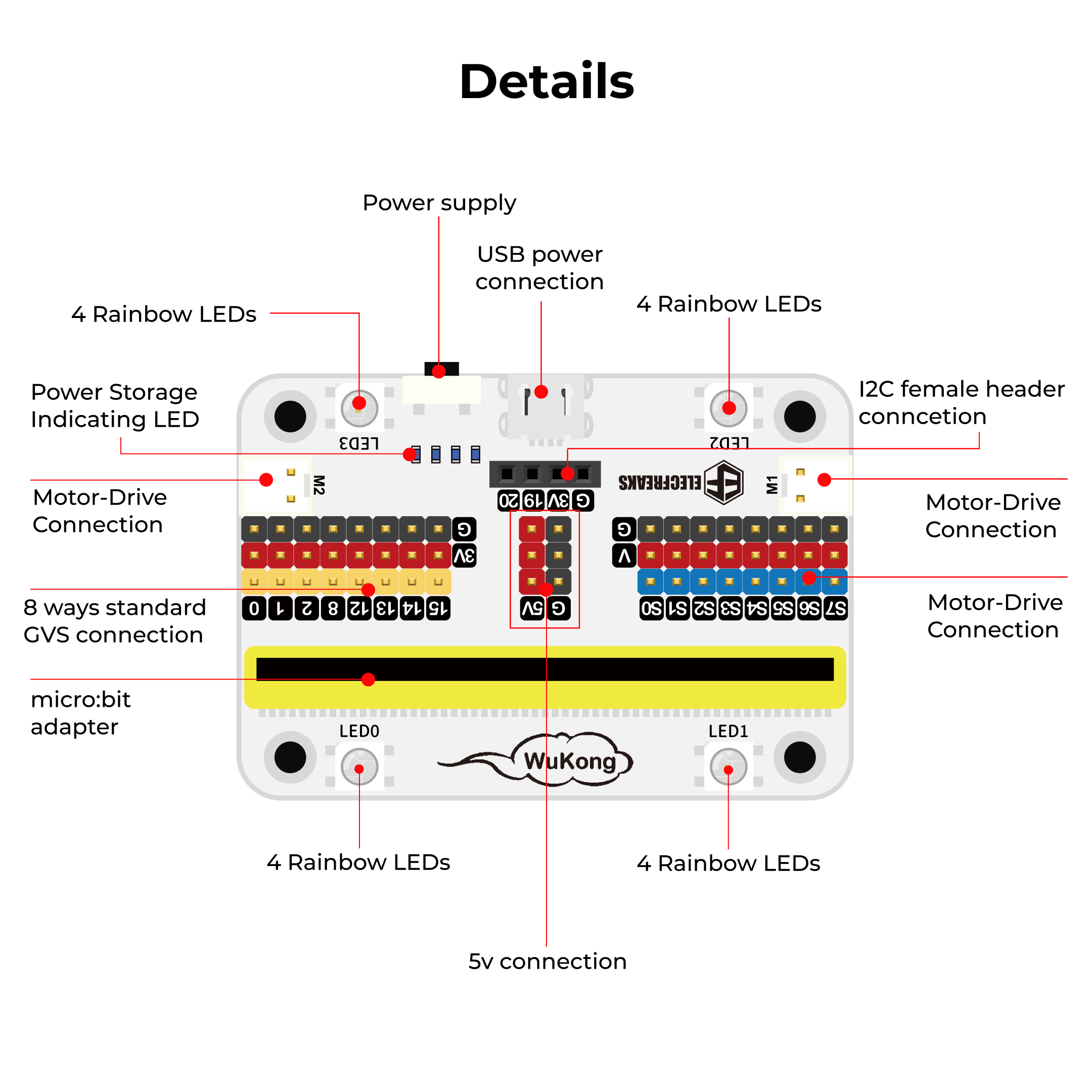

Details

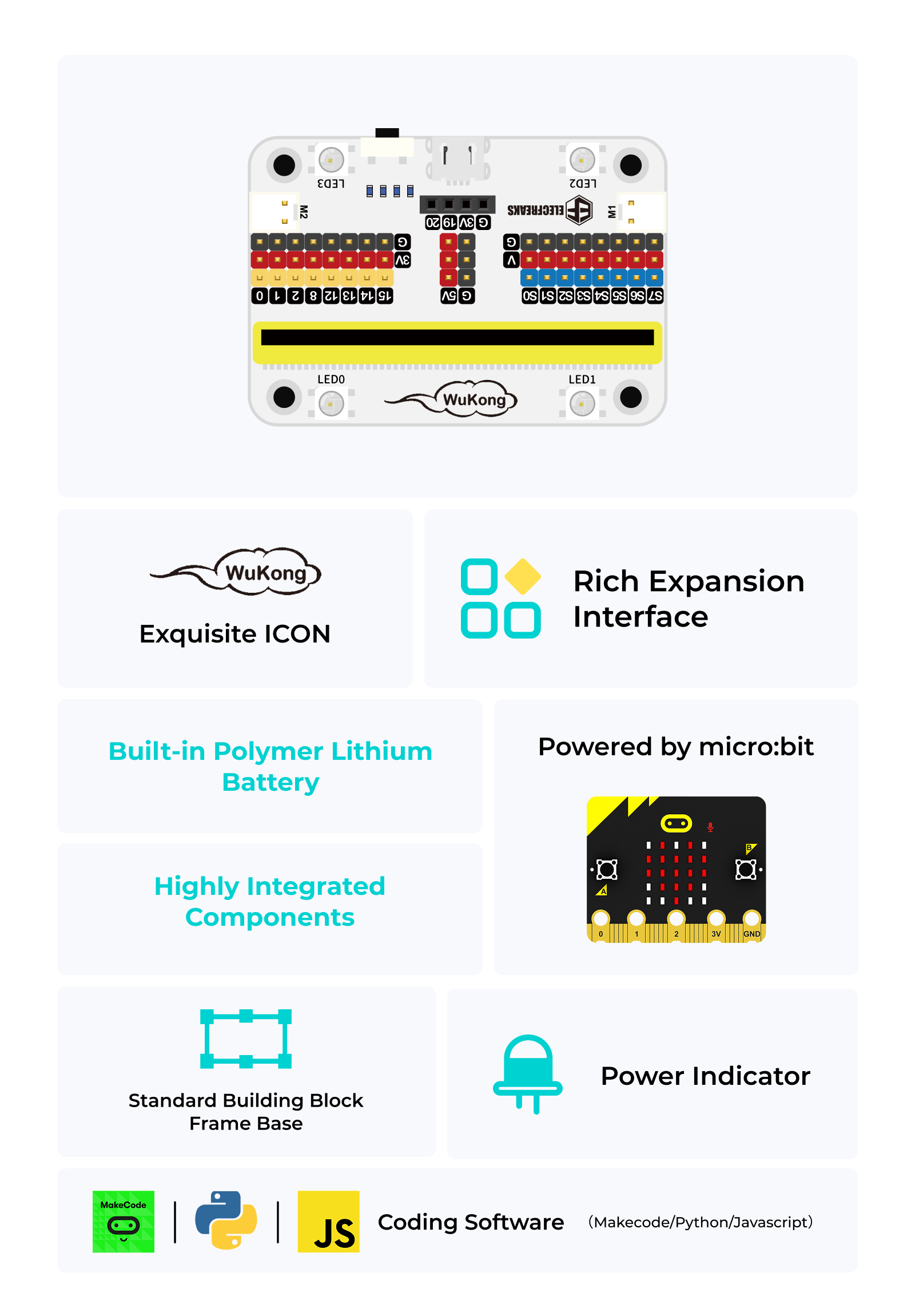

Exquisite ICON
The Wukong Breakout Board features a unique icon, and clear silkscreen printing.
Lithium Polymer Battery is Safer
The onboard lithium battery is more convenient to use. The 400mah polymer lithium battery has sufficient power, stable discharge, long service life, and is safe and explosion-proof.
Durable Power On/Off Style
Press once to turn it on, and press twice to turn it off. It is more durable than a toggle switch.

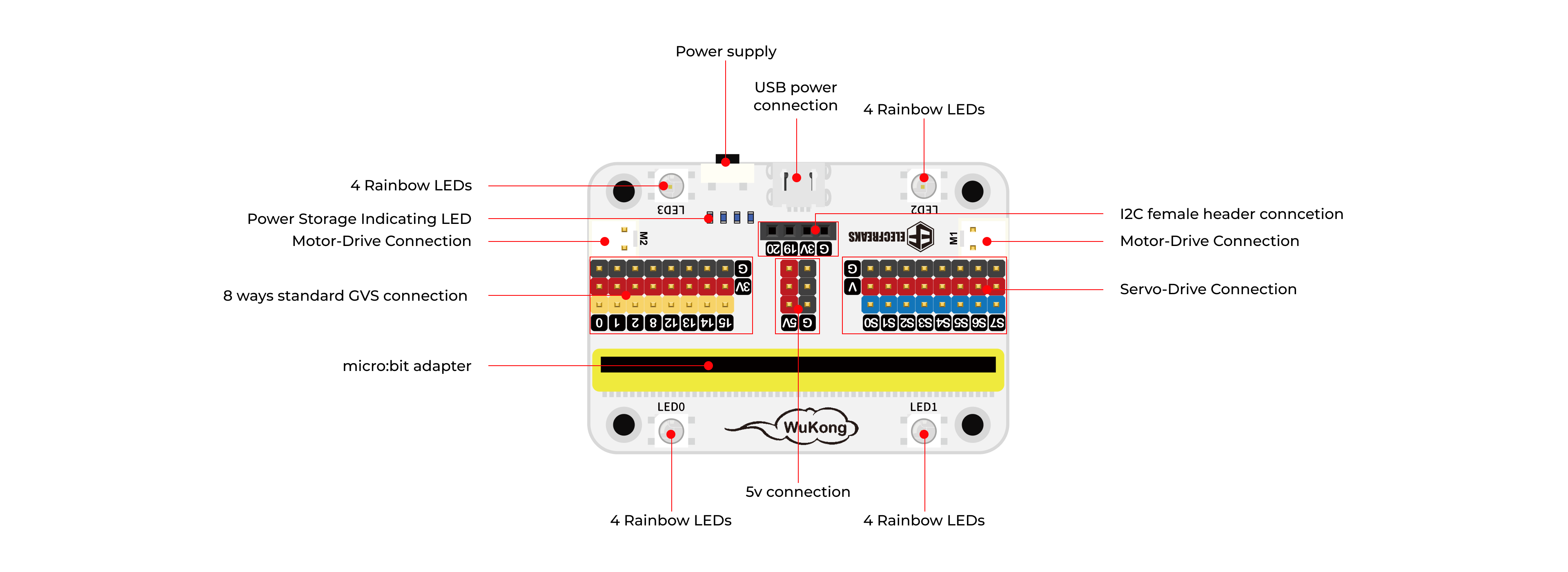

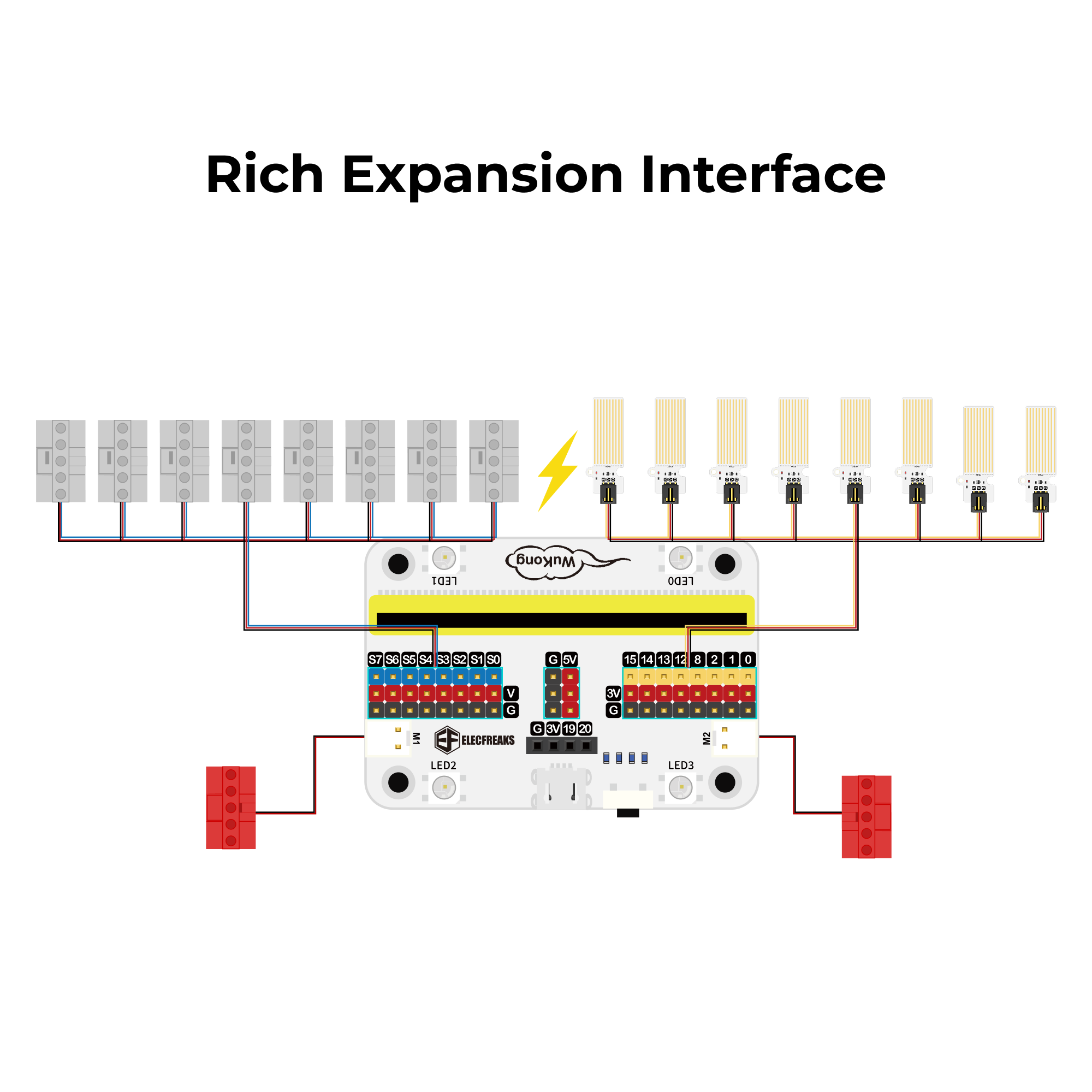

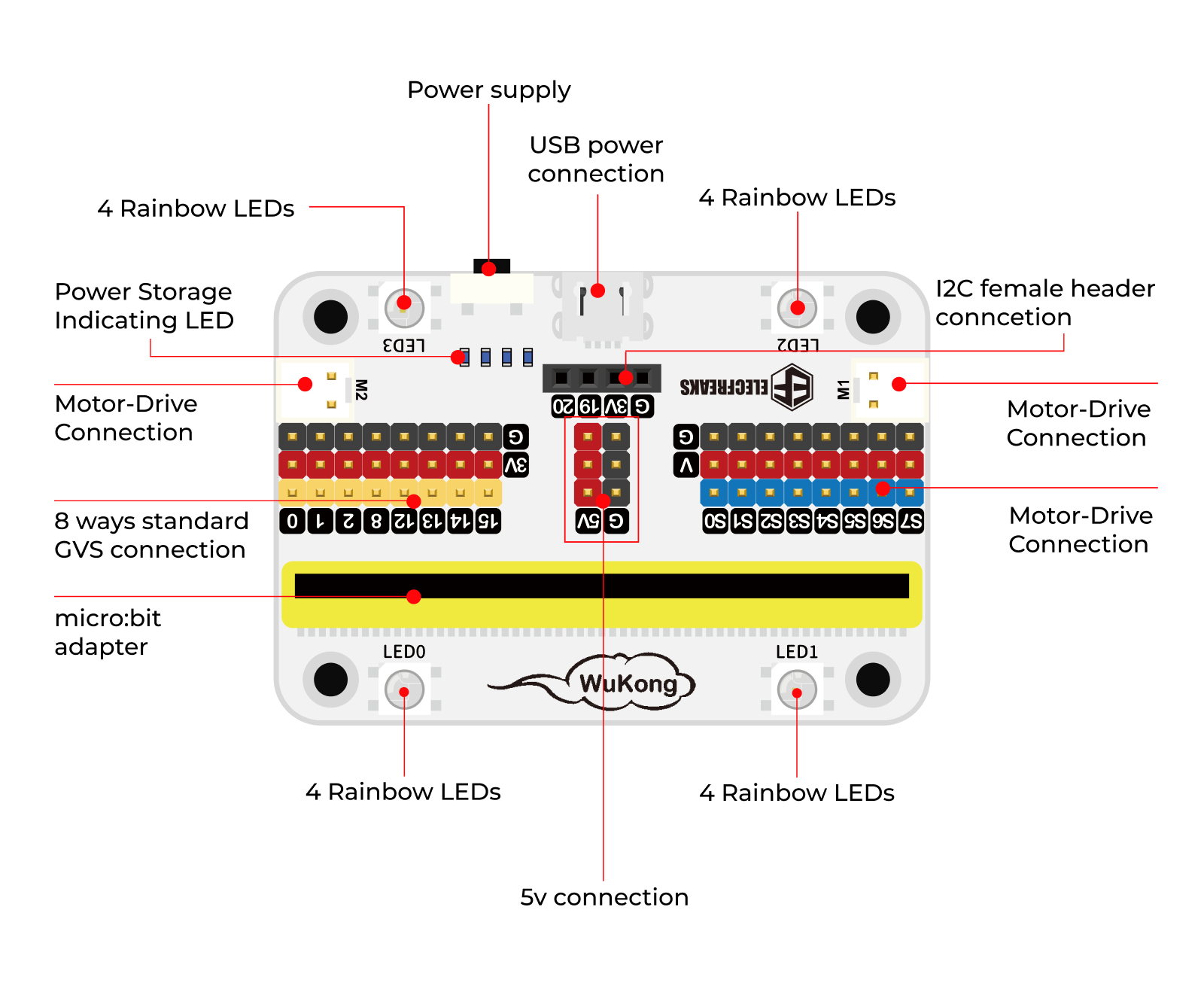

Rich Expansion Interface

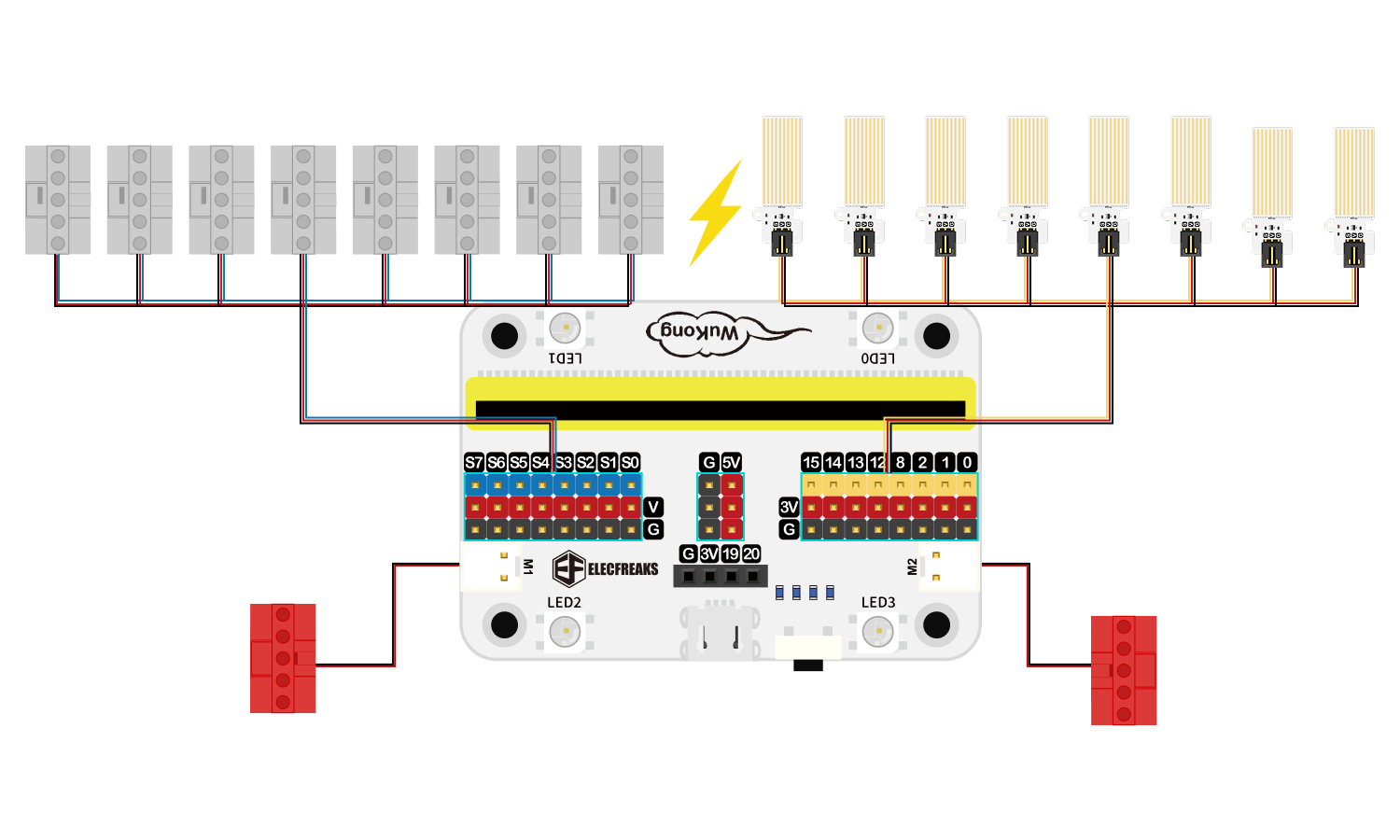

There are 19 interfaces available on the Wukong Breakout Board that can be used to expand and connect various sensors and servos.
Power Indicator
Wukong Breakout Board has four LEDs that indicate the power storage.

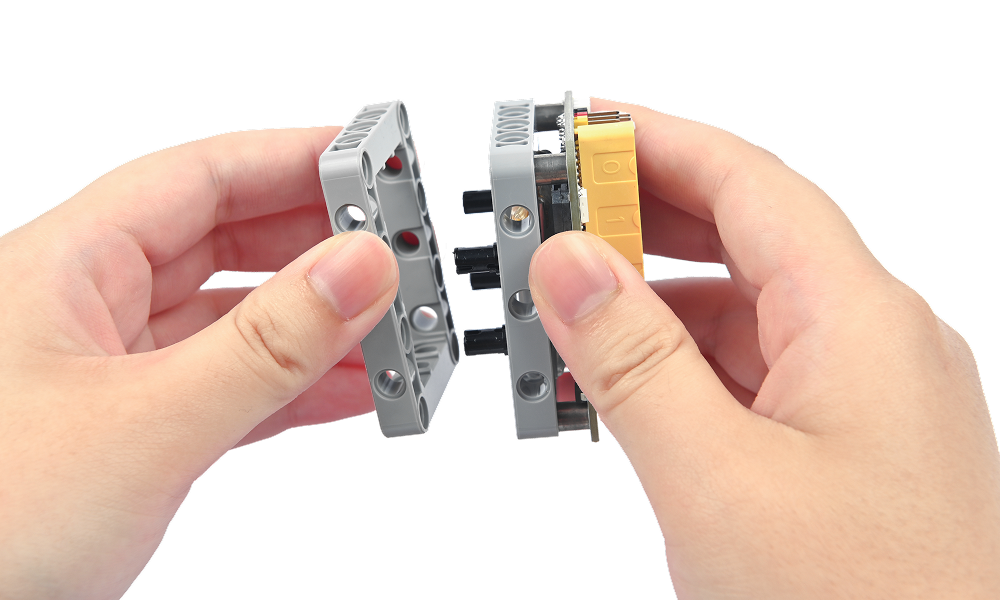

Optimized 7x5 Base for Block Expansion
Wukong Breakout Board comes with a 7*5 building block base, which is more convenient for building blocks to build and expand.

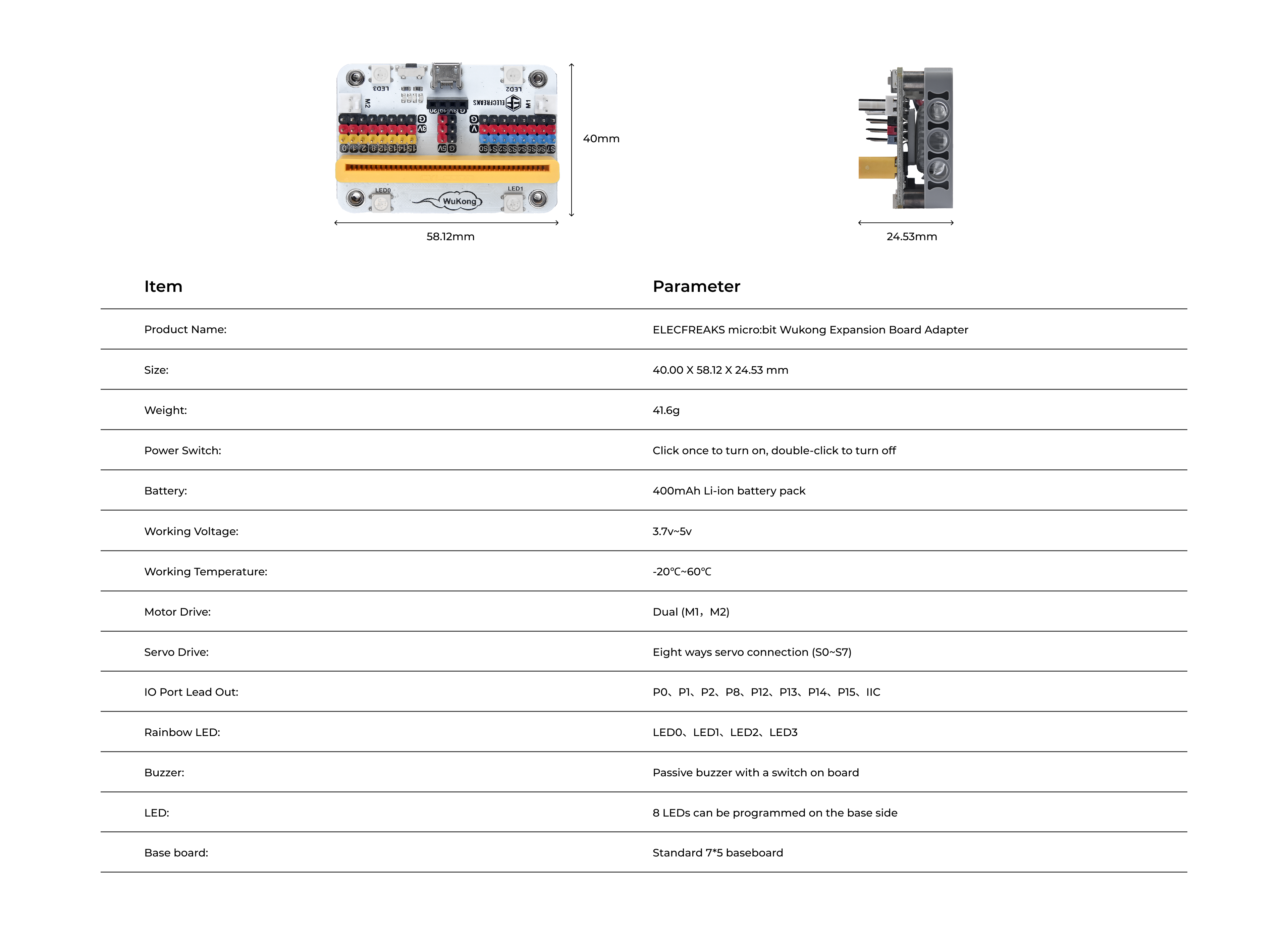

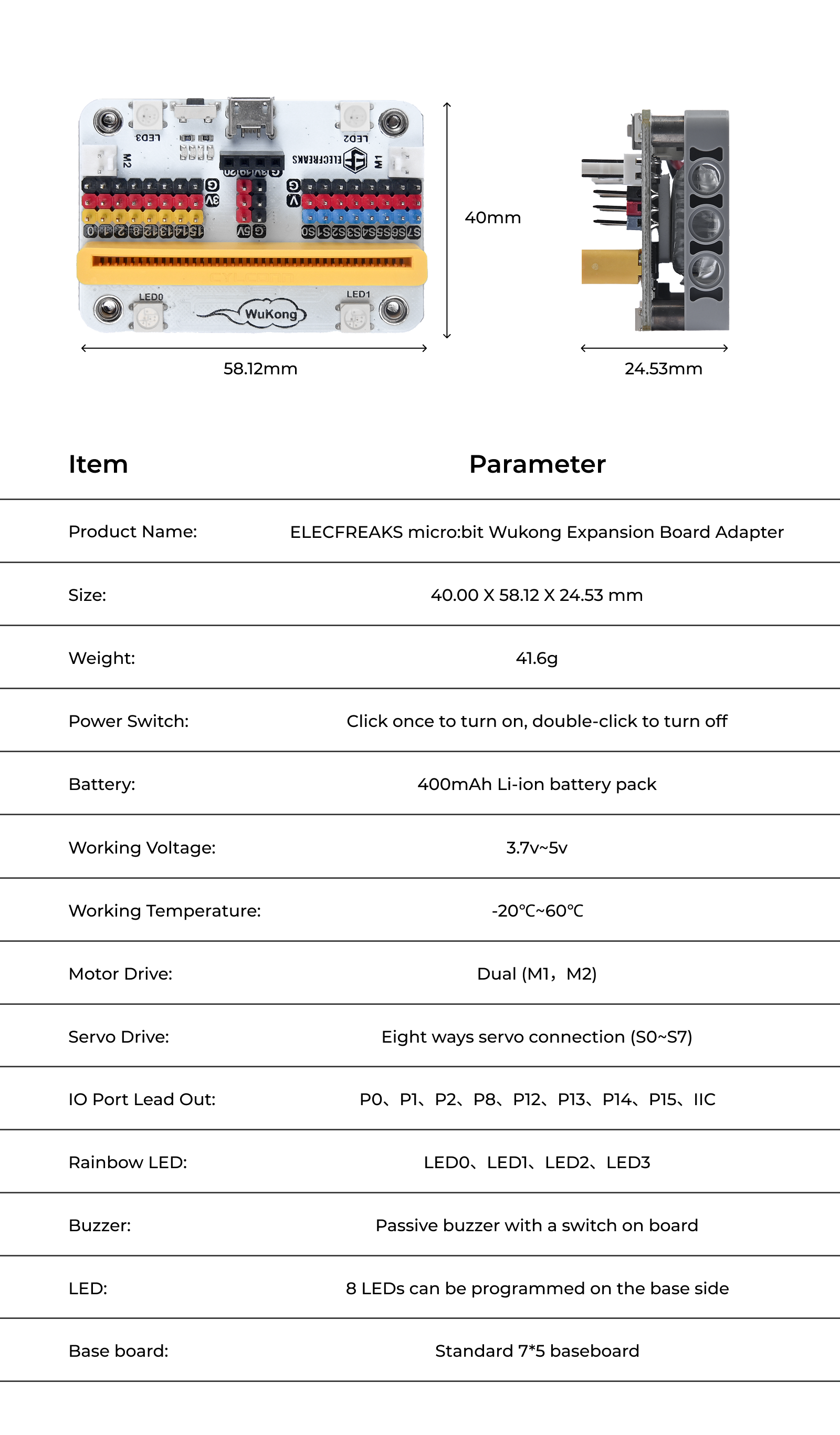

Specification
