ELECFREAKS micro:bit Robit Smart Car Kit (Without micro:bit Board）

Robit smart car is a kind of smart car which is based on micro:bit and ElecFreaks robit. Besides the RJ25 wiring port and motor port in Mbot, the robit is also equipped with 2-way DC motor connectors , 2-way stepping motor connectors(Stepping motor connectors and 4-way DC motor connectors are multiplexed ) and 8-way PWM signal output connectors. It can drive PWM signal driving devices like servo. It has 8-way G-5V-S digital signal connectors(for connecting with OCTOPUS electric bricks) and 4-way G-5V-S analog signal connectors(for connecting with OCTOPUS electric bricks). Robit can realize all current basic functions of MBOT and it can be regarded as the new generation of Mbot.

CHARACTERISTIC

Support 4 channels of DC motor and 2 channels of stepping motors.
With 8-way PWM signal output connectors.
With 8-way G-5V-S digital signal connectors(for OCTOPUS electric brick).
With 4-way G-5V-S analog signal connectors(for OCTOPUS electric brick).
DC power supply input voltage: DC 3.7V-6V.
Lithium battery power supply input voltage: DC 3.7-4.2V.

SAMPLE CODE

Click "Add Package" and search with "robit", then add the robit package.
The code for moving forward is listed below, you can have your car moving forward after downloading.
https://makecode.microbit.org/_7RrcC6R3T5MP
You can also download it directly:

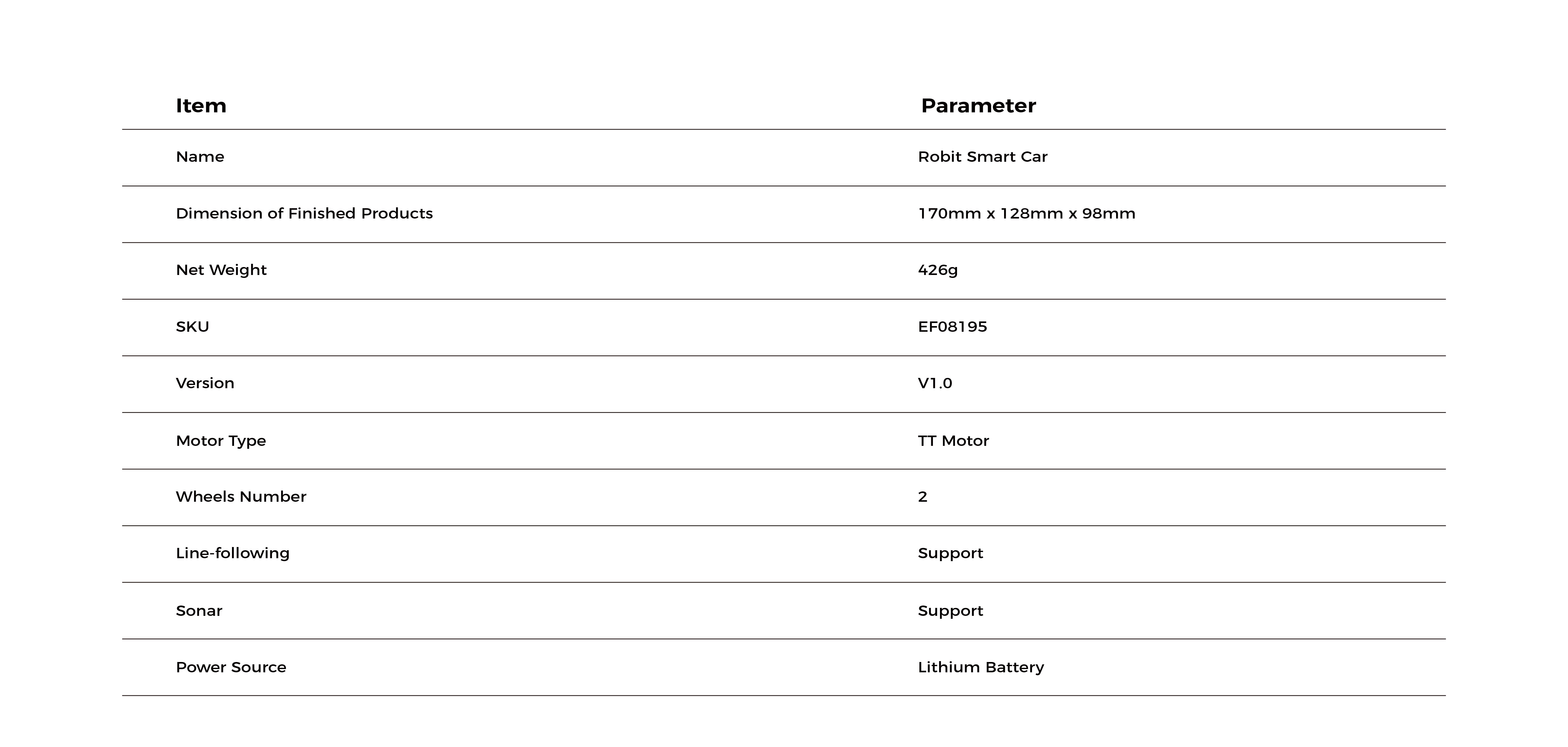

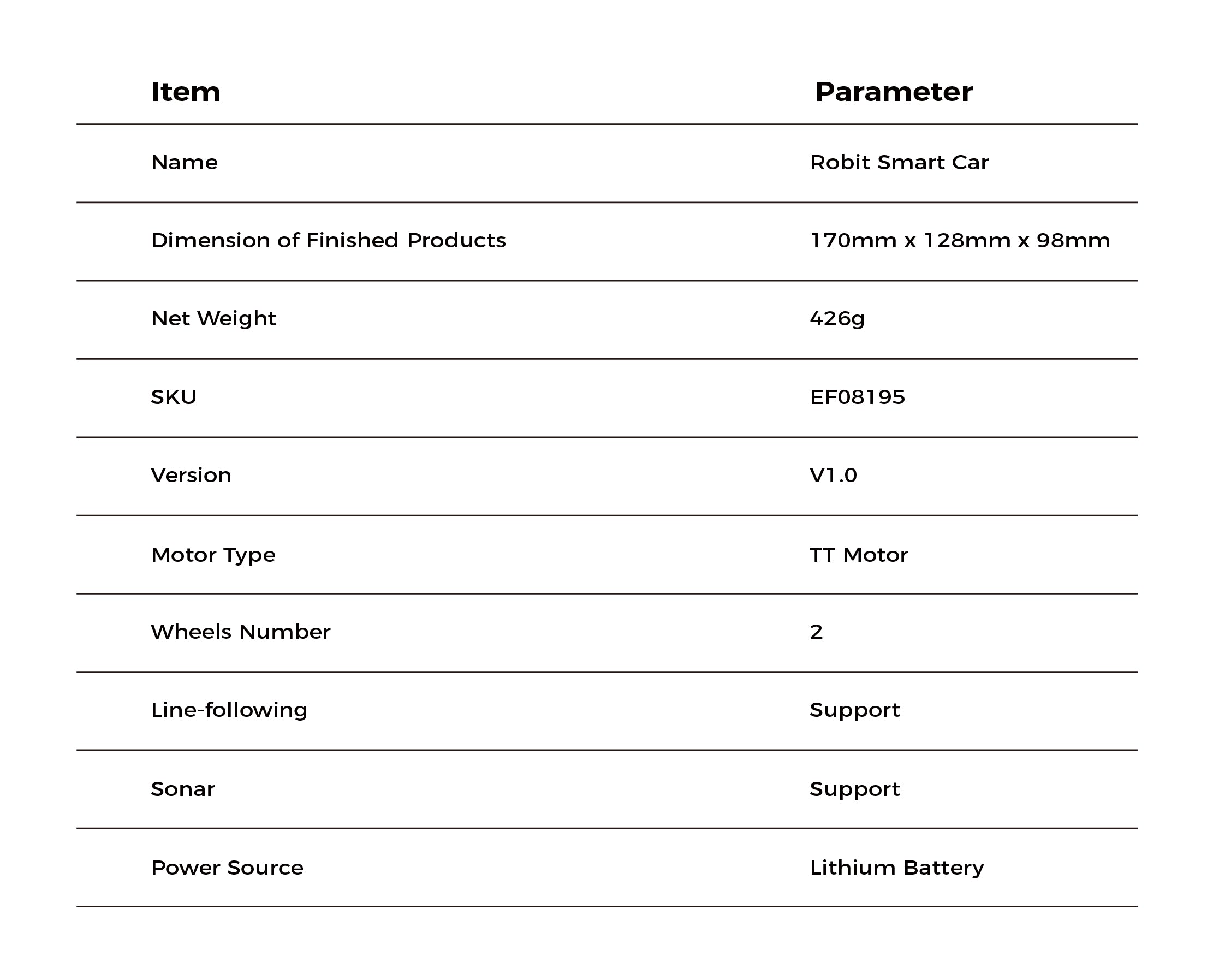

PARAMETER

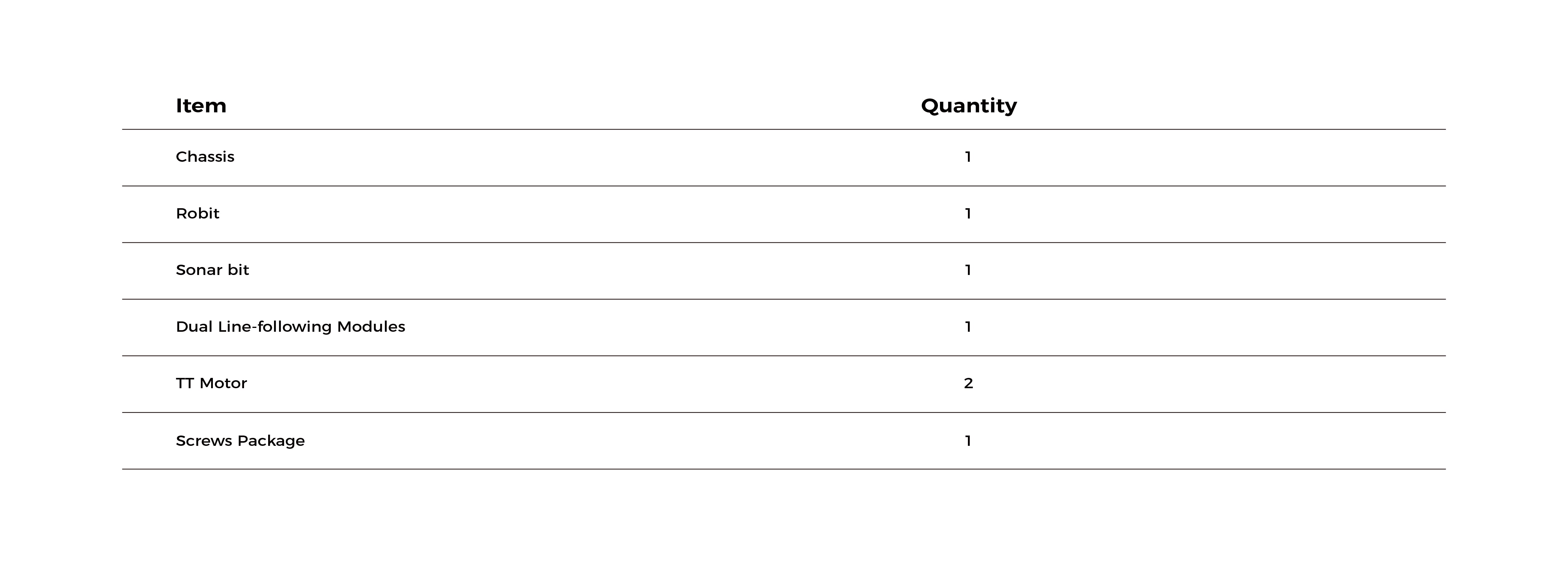

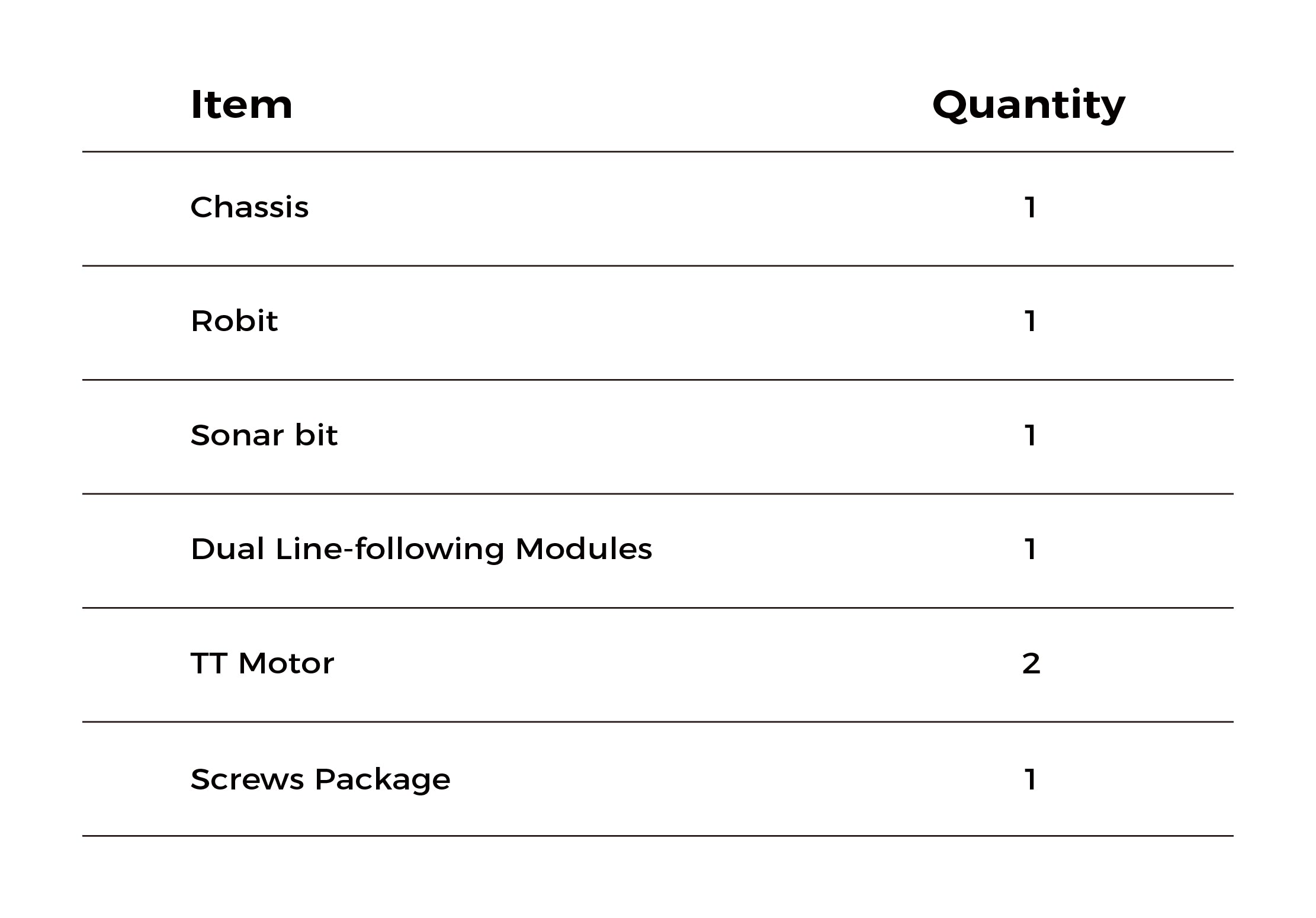

PACKAGE LIST

RESOURCES

robit Smart Car kit
