ELECFREAKS Octopus Temperature And Humidity Sensor

SKU: EF04019
Price
$4.90
In stock and ready for shipping

Frequently Bought Together

We Accept

American Express
Apple Pay
Mastercard
PayPal
Visa

Description

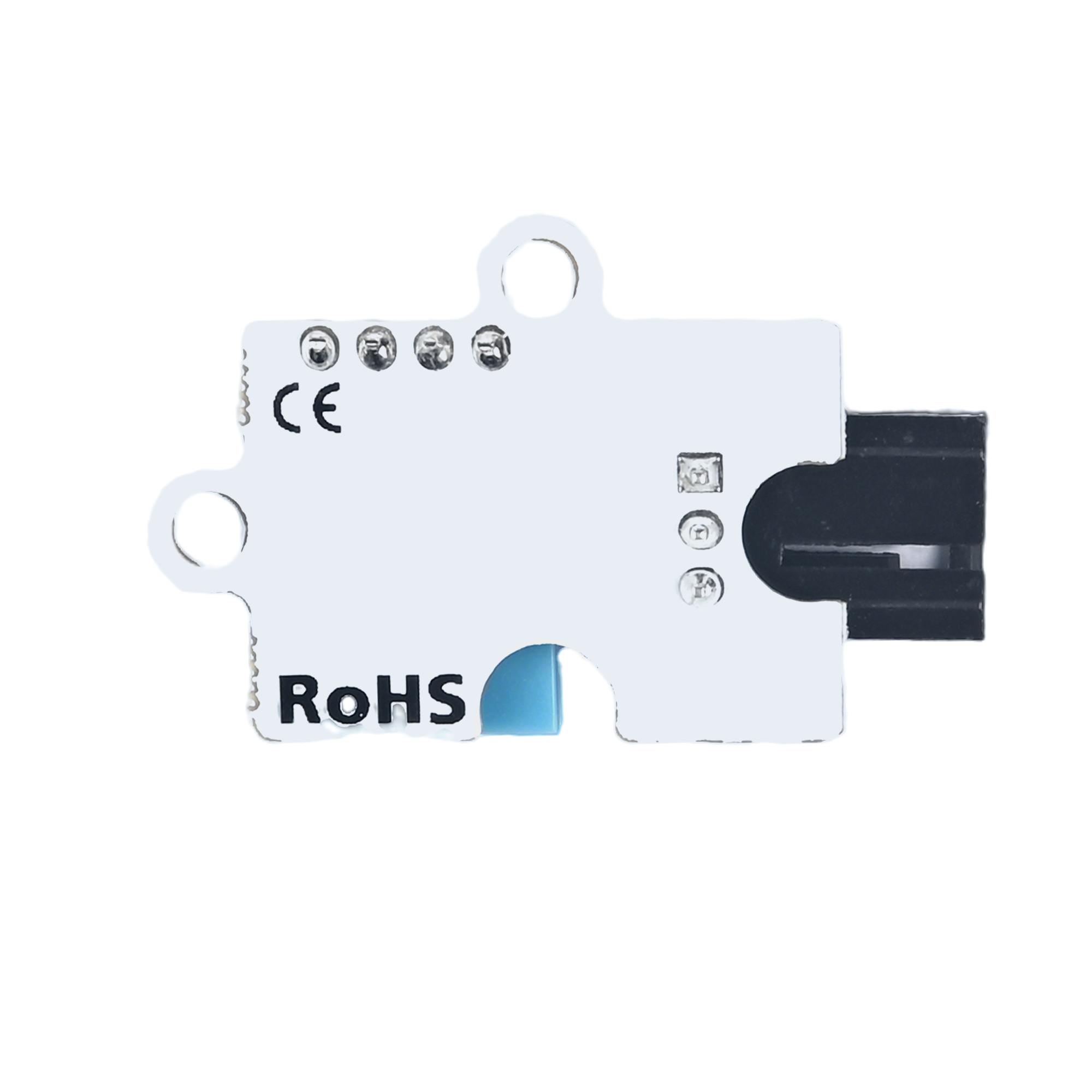

The temperature and humidity sensor is a module based on the DHT11 digital temperature and humidity sensing element. Simple design, and sensitive to the ambient temperature and humidity changes, it can be used for temperature alarm, humidity testing, and other works.

FEATURES

The power supply needs: 5V
Interface type: Digital
Pin Definition: 1-Signal 2-VCC 3-GND
Fast response and High sensitivity
Simple drive circuit
Stable and long life

PACKAGE LIST

Module Quantity
DHT11 Temperature And Humidity Sensor Module 1
Analog Sensor Cable 1

HARDWARE CONNECTION

Connect the sensor to the P1 port on OCTOPUS:BIT.
dht11 temperature and humidity sensor

PROGRAMMING

STEP 1

Click Advanced in the code drawer of MakeCode to see more options.
dht11 temperature and humidity sensor

STEP2

To program for the sensor, we need to add a package. Find Add Package in the bottom of code drawer and click it. This will pop up a dialogue box. Search "IOT" in the box and click to add that package.
dht11 temperature and humidity sensor

CODE

You can see the whole program from the link here: link
Or you can download it from the page below.

LEARN

The temperature and humidity value is scrolling on micro:bit screen.
