Sonar:bit is an ultrasonic module with a 3-5V working voltage. It is available to be used in a 3.3V or 5V microcontroller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only. You can use this module for occasions like short-distance measurement, smart cars, robots, micro:bit and Arduino teaching, etc.
Input voltage: 3V~5V
Enable to drive micro:bit or Arduino directly.
Standard 3-wire GVS connector, which occupies 1 IO port only.
We can see the distance between sonar:bit and the object is displayed on micro:bit in real-time. The unit is centimeters.
Sonar:bit は、動作電圧が 3 ~ 5V の超音波モジュールです。 3.3V または 5V のマイクロコントローラ システムで使用できます。 3 線式 (GVS) ケーブル 1 本だけで、正常に動作します。通常の 4 線式超音波モジュールと比較して、IO ポートを 1 つ節約できます。 sonar:bitの測定範囲は4cm~400cmです。 ±1cmの公差のみで安定した正確な測定データを出力できます。このモジュールは、近距離測定、スマートカー、ロボット、micro:bit および Arduino ティーチングなどの場合に使用できます。
入力電圧:3V~5V
micro:bit または Arduino を直接駆動できるようにします。
1 つの IO ポートのみを占有する標準の 3 線式 GVS コネクタ。
送信機
送信機は、超音波信号を送信するために使用されます。
レシーバー
受信機は、超音波信号を収集するためのものです。

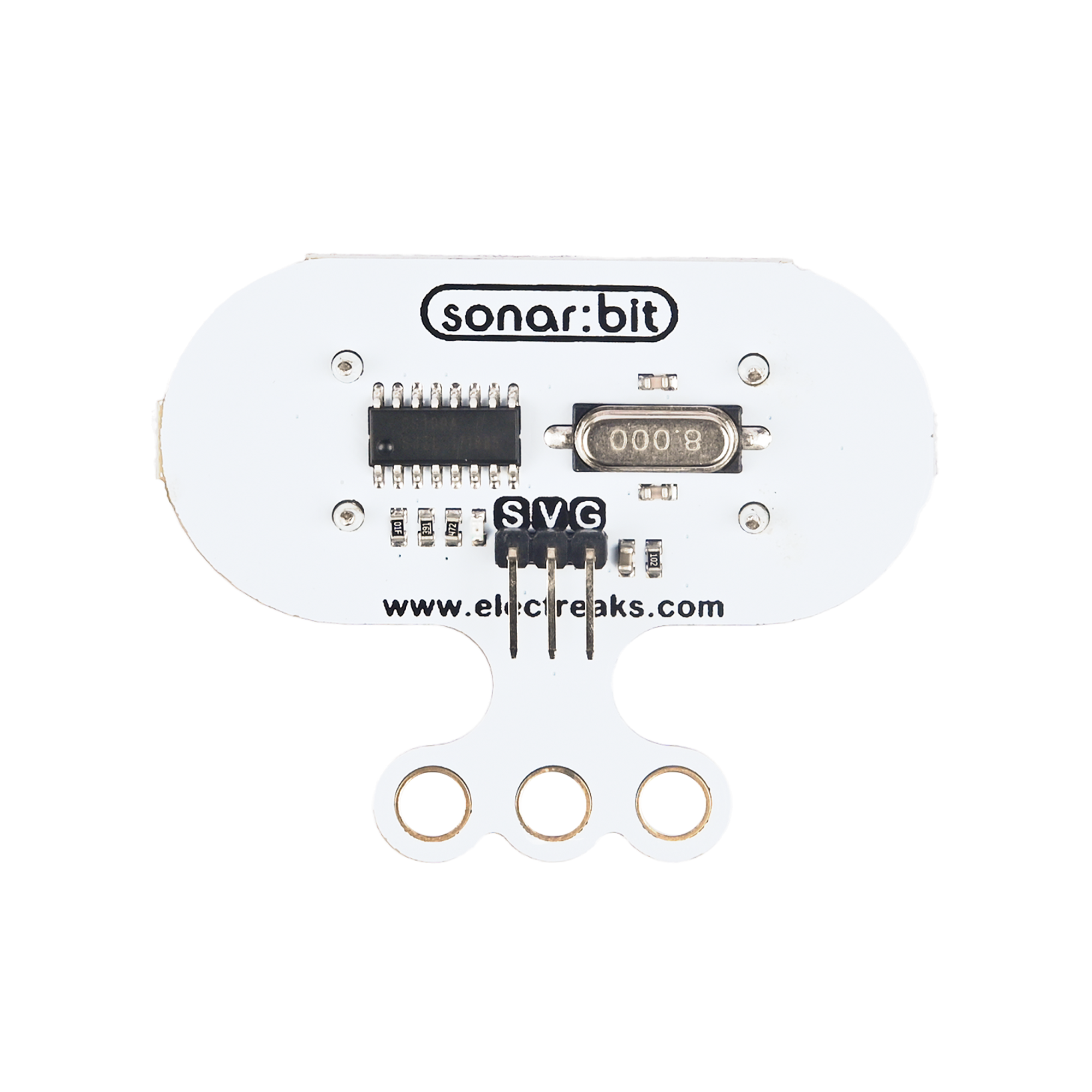

MCU
これが sonar:bit のマスターチップです。
信号を送るチップ
このチップは、送信機を駆動して超音波信号を送信するために使用されます。
信号を受信するためのチップ
このチップは、超音波エコー信号の受信と処理、およびマスター チップへのフィードバックに使用されます。
GVS ポート
GVS ポートにより、外部デバイスの制御が可能になります。
ハードウェア接続
sonar:bit を sensor:bit の P2 ポートに接続し、micro:bit をコンピュータに接続します。
完了すると、次の図が表示されます。
クリックして Makecode オンライン エディターを開きます。
P2 の戻り値を変数の距離に代入し、micro:bit 画面に表示するプログラムを作成します。
プログラム全体はリンク先からご覧いただけます
または、以下のページからダウンロードできます。
sonar:bit とオブジェクトの距離が micro:bit にリアルタイムで表示されていることがわかります。単位はセンチメートルです。
商品名 ソナー:ビット
SKU EF04089
入力電圧 DC 3~5V
測定範囲 4~400cm
精度公差±1cm
サイズ 40.6mm×51.06mm
正味重量 12g
コンポーネント | 数量(個) |
---|---|
ソナー:ビット | 1 |
GVSジャンパーケーブル | 1 |
