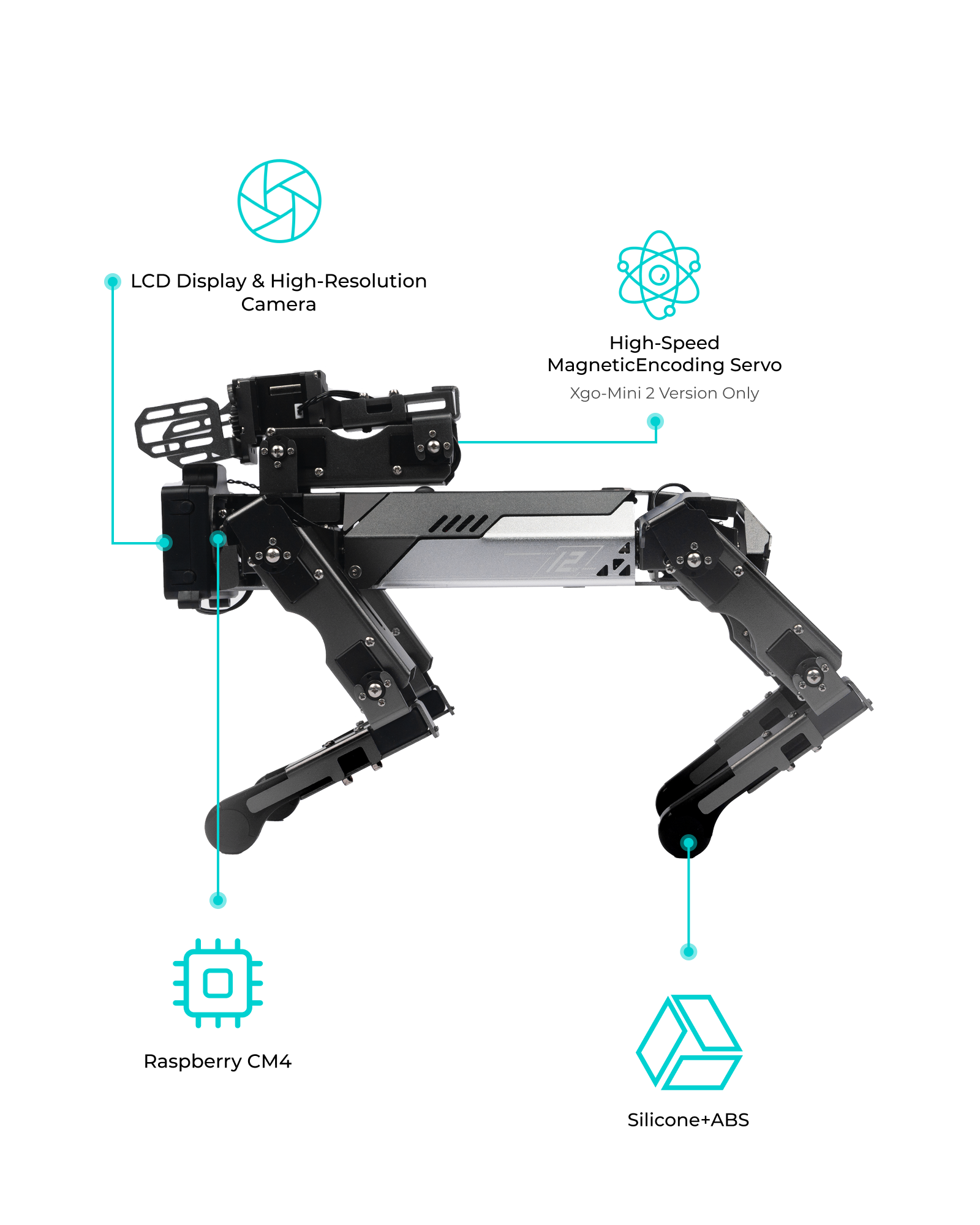

Quadruped robot dog XGO-Mini V2 side view showing LCD display with high-resolution camera, Raspberry CM4 computing module, high-speed magnetic encoding servo, and durable silicone plus ABS construction for robotics education and STEM learning
Exploded view of quadruped robot dog components showing camera module, PCB board, protective casing, and assembly parts for robotics learning

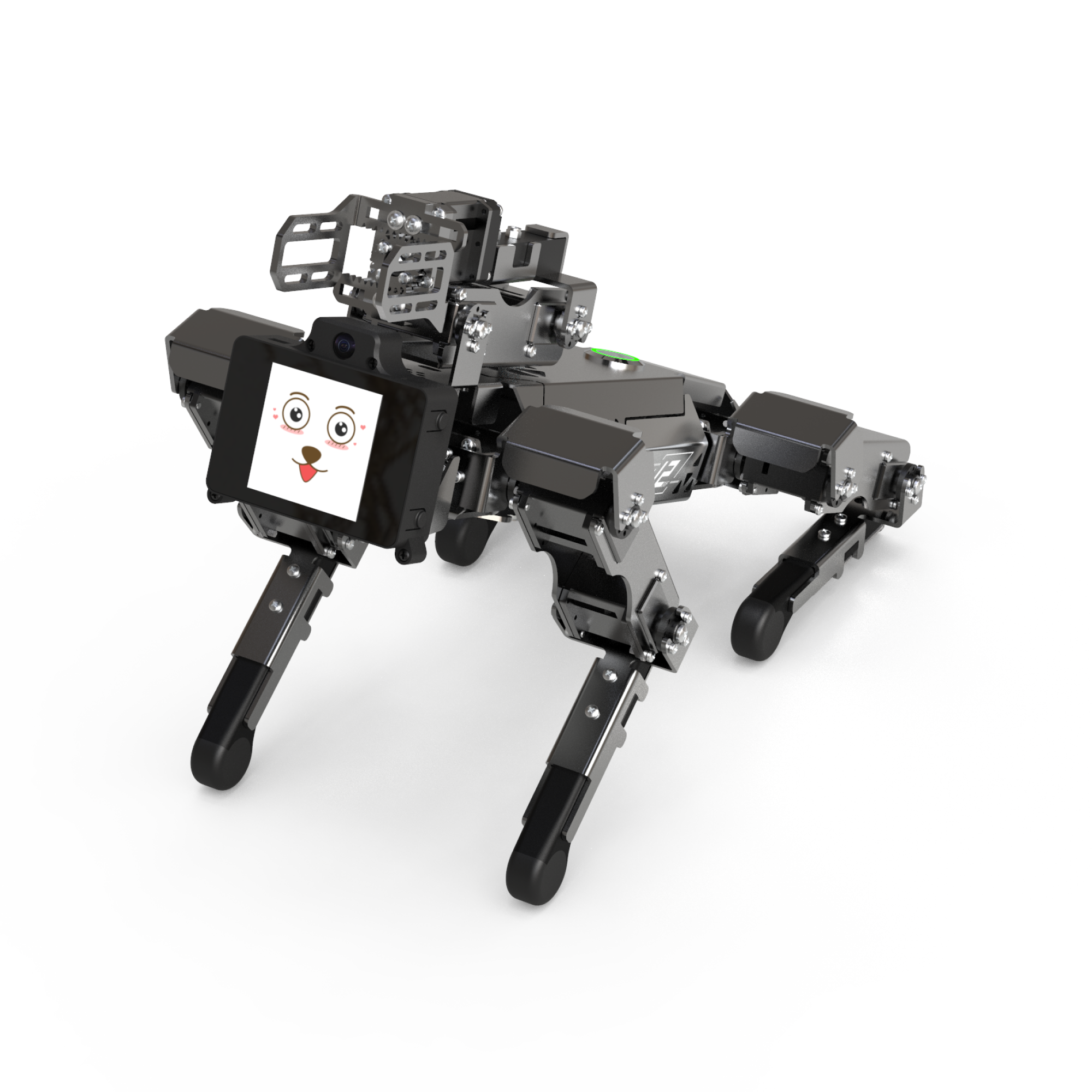

Quadruped robot dog XGO-Mini V2 front view showing expressive LCD display face, mechanical arm mount, and four-legged structure for STEM education, robotics research, and AI learning

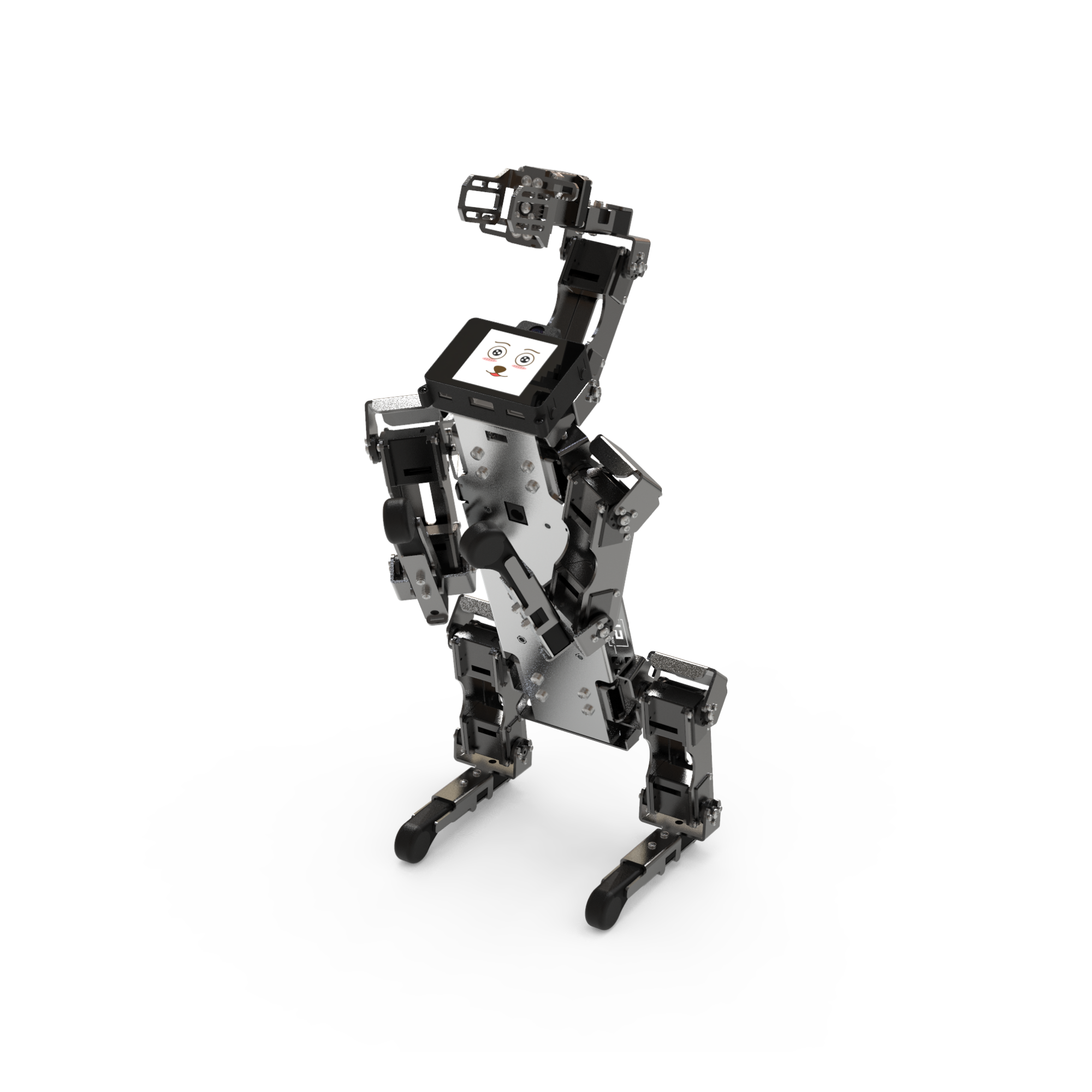

Quadruped robot dog XGO-Mini V2 standing upright on hind legs with expressive LCD display face and raised robotic arm, demonstrating flexibility for STEM education and robotics learning

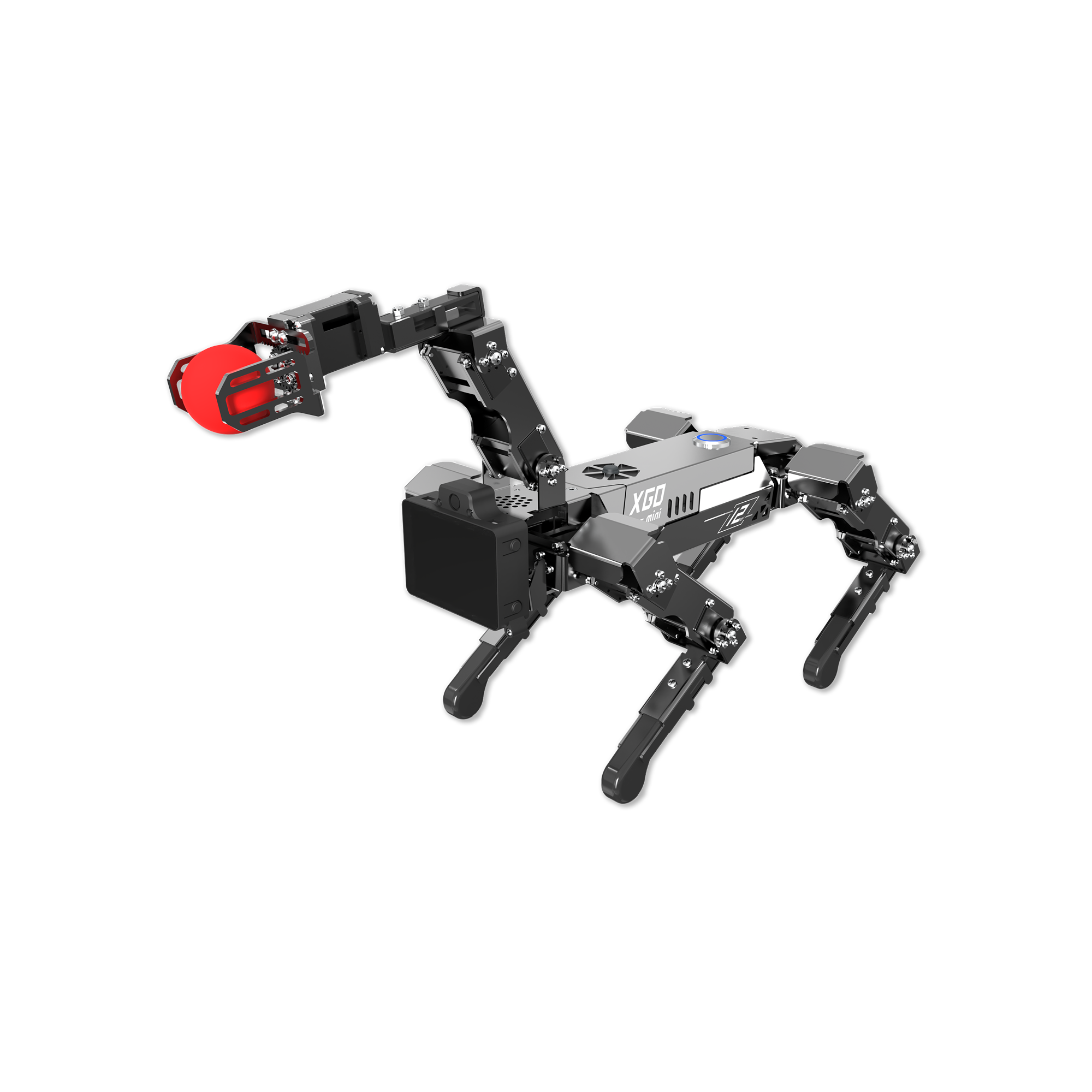

Quadruped robot dog XGO side view showing mechanical arm and four-legged structure for STEM robotics learning

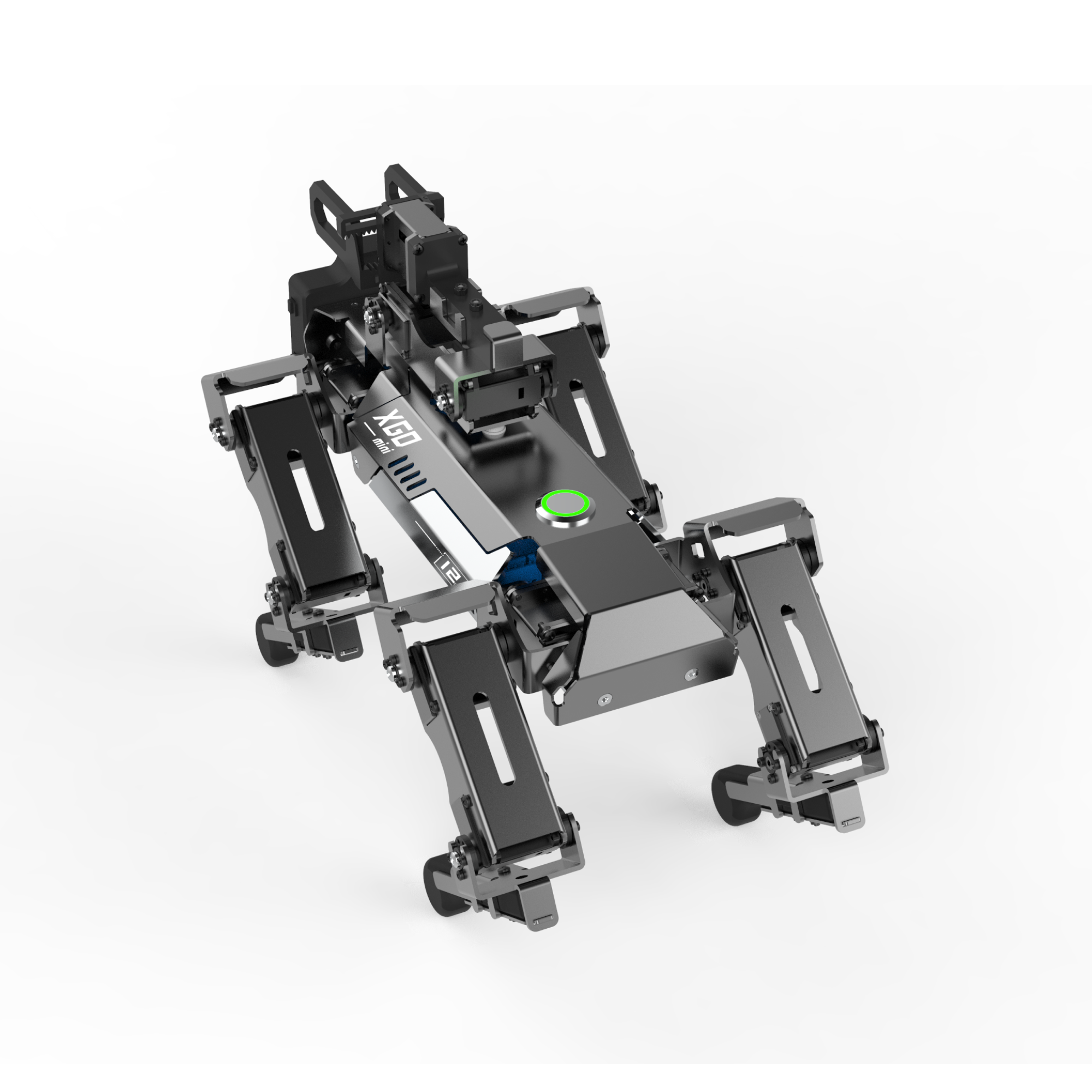

Quadruped robot dog XGO top view highlighting mechanical design, four-legged structure and STEM robotics learning
Packing list of quadruped robot dog XGO Mini V2 including charger, HDMI cable, instruction manual, USB hub, colored balls, screwdriver and screw pack for robotics education
Quadruped robot dog XGO-Mini V2 featuring a four-legged design, mechanical arm with red clamping jaws, expressive LCD face display, and sturdy aluminum alloy body for STEM education and robotics learning
Quadruped robot dog XGO-Mini V2 with 15 degrees of freedom, Raspberry Pi CM4 high-performance computing, AI functions including face detection, object classification and speech recognition, IMU posture self-stabilization, durable silicone and ABS construction, app control, coding support in MakeCode, Python and JavaScript, and CE/ROHS certification
Quadruped robot dog XGO-Mini V2 side view showing LCD display with high-resolution camera, Raspberry CM4 computing module, high-speed magnetic encoding servo, and durable silicone plus ABS construction for robotics education and STEM learning
Exploded view of quadruped robot dog components showing camera module, PCB board, protective casing, and assembly parts for robotics learning
Quadruped robot dog XGO-Mini V2 front view showing expressive LCD display face, mechanical arm mount, and four-legged structure for STEM education, robotics research, and AI learning
Quadruped robot dog XGO-Mini V2 standing upright on hind legs with expressive LCD display face and raised robotic arm, demonstrating flexibility for STEM education and robotics learning
Quadruped robot dog XGO side view showing mechanical arm and four-legged structure for STEM robotics learning
Quadruped robot dog XGO top view highlighting mechanical design, four-legged structure and STEM robotics learning
Packing list of quadruped robot dog XGO Mini V2 including charger, HDMI cable, instruction manual, USB hub, colored balls, screwdriver and screw pack for robotics education

ELECFREAKS CM4 XGO-Mini Robot Dog Kit For Raspberry Pi, metal 15 DOF AI quadruped robot dog (Python/ROS)

SKU: EF08304-1
セールスプライス
$849 USD
通常価格
$1,117 USD
保存します
$268 USD (24%)

You can find the introduction of this product and many educational cases in our wiki.

Link：http://wiki.elecfreaks.com/en/pico/cm4-xgo-robot-kit/product-introduction/xgo-mini-v2-product-instruction
Plugs:
European Standard Plug

Product variant with selected options does not exist!
在庫あり、発送準備完了

Frequently Bought Together
10,000+ schools choose ELECFREAKS — Trusted for quality STEM education.
We Accept
microbit AI vision sensor

Description

The ELECFREAKS CM4 XGO-mini Robot Dog is an AI-powered desktop robot with 15 degrees of freedom, omnidirectional mobility, and Raspberry Pi CM4 integration for edge AI tasks. It features a robotic arm, 4.5KG.CM high-torque servos, and six-axis stabilization for precise heavy-load motion. Equipped with multi-sensor feedback (IMU/joint/current), 4GB RAM, programmable controls, HDMI/USB-C ports, and a 3500mAh 3C battery with safe charging, it enables extended AI processing and external connectivity.

Quadruped robot dog side view showing mechanical arm, adapter, and four-legged structure with AI features such as face detection, object classification, and speech recognition for STEM education and robotics learning Quadruped robot dog side view showing mechanical arm, adapter, and four-legged structure with AI features such as face detection, object classification, and speech recognition for STEM education and robotics learning

Built-in CM4 Module

ELECFREAKS CM4 XGO Robot Dog Kit V2 for Raspberry Pi is powered by a Raspberry Pi Compute Module 4 (CM4) which boasts a Quad-Core Cortex-A72 CPU running at 1.5GHz. It offers wireless connectivity with dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE. With 4GB of RAM for multitasking and 32GB of Micro SD card storage for the operating system, XGO-mini V2 boasts a fast boot-up time and a smooth overall user experience.

Exploded view of quadruped robot dog components showing camera module, PCB board, protective casing, and assembly parts for robotics learning Exploded view of quadruped robot dog components showing camera module, PCB board, protective casing, and assembly parts for robotics learning

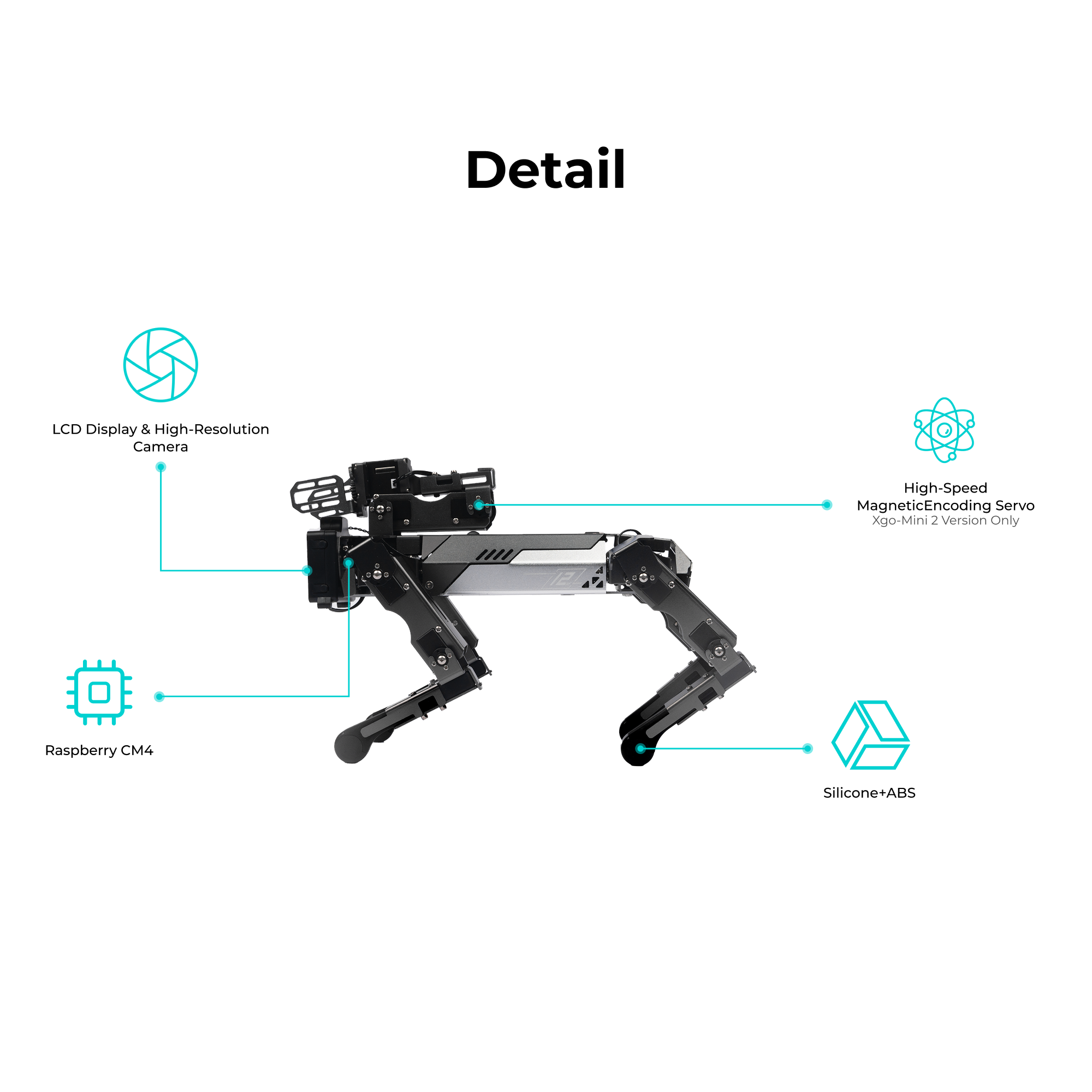

Detail

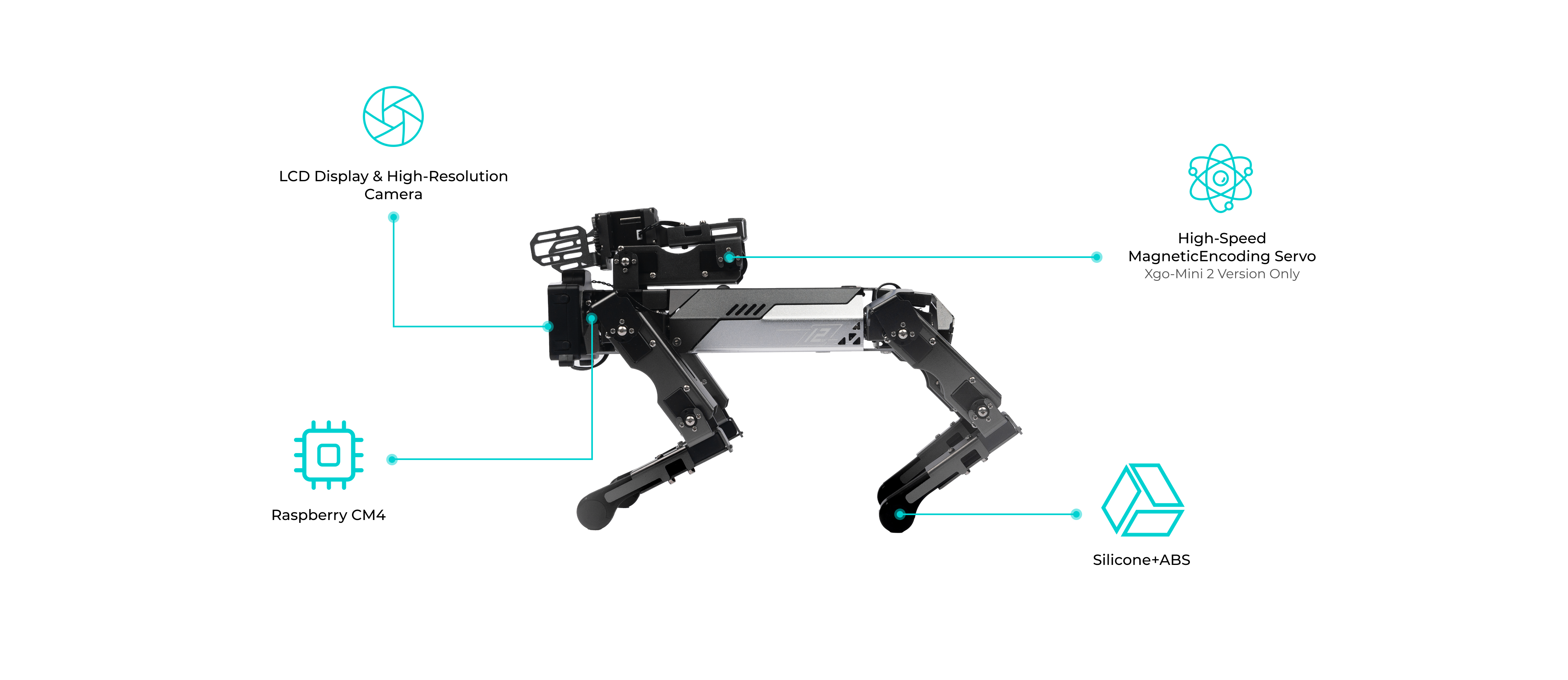

Side view of quadruped robot dog highlighting LCD display with high-resolution camera, Raspberry CM4 processor, silicone and ABS body, and high-speed magnetic encoding servo for robotics and STEM education Side view of quadruped robot dog highlighting LCD display with high-resolution camera, Raspberry CM4 processor, silicone and ABS body, and high-speed magnetic encoding servo for robotics and STEM education
Quadruped robot dog with mechanical arm and display demonstrating movement on a desk, showcasing robotics and STEM education features

Hears, Recognizes, and Responds—Just Like a Real Dog

ELECFREAKS CM4 XGO Robot Dog Kit V2 for Raspberry Pi comes equipped with fully functional Al modules that feature visual recognition, voice recognition, and gesture recognition, allowing it to hear, recognize, and respond to users like a real dog.

Records and Replays Your Custom Actions

XGO-mini V2 supports the demonstrating mode, allowing it to remember the joint positions of each action and execute the action group you have designed.

Robot dog kit using robotic arm to grasp an orange cube on a desk next to a laptop

Features

Quadruped robot dog walking on a wooden surface while lifting a red ball with its mechanical arm, showcasing robotics and STEM education features

15 Degrees of Freedom

Quadruped robot dog balancing on a tilting platform while holding a red ball with its mechanical arm, demonstrating robotics stability and STEM learning features

Self-Stabilization

Quadruped robot dog walking forward to track and approach a red ball using its mechanical arm, demonstrating robotics learning and STEM education applications

Intelligent Robotic Arm

Application

Two quadruped robot dogs interacting playfully on a desk with a smiling person, showcasing mechanical arm movement, four-legged stability, and applications in STEM education and robotics learning

Dance with Music

Quadruped robot dog standing on a desk, responding to a human hand gesture with its four-legged movement, demonstrating interactive STEM robotics learning and mechanical arm adaptability

Gesture Recognition

Quadruped robot dog on a desk recognizing and responding to a red color card, showcasing AI vision, STEM education, and interactive robotics learning

Color Block Tracking

Product Comparison

Comparison chart of quadruped robot dogs XGO-Mini V2 and XGO-LITE 2, showing differences in Raspberry Pi CM4 host, programming support with Blockly, Python and ROS, structure, weight, servos, endurance, and price for STEM robotics learning Comparison chart of quadruped robot dogs XGO-Mini V2 and XGO-LITE 2, showing differences in Raspberry Pi CM4 host, programming support with Blockly, Python and ROS, structure, weight, servos, endurance, and price for STEM robotics learning

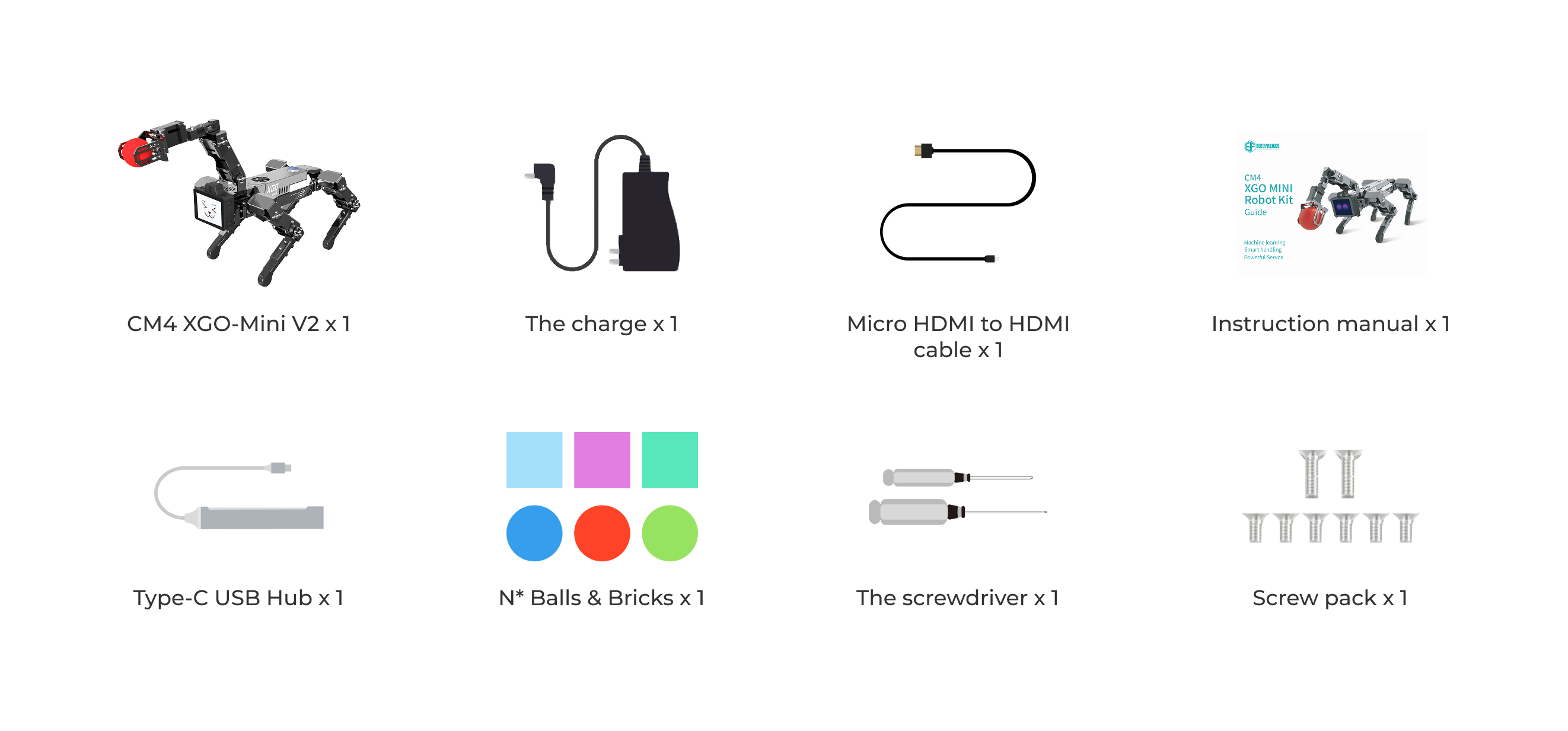

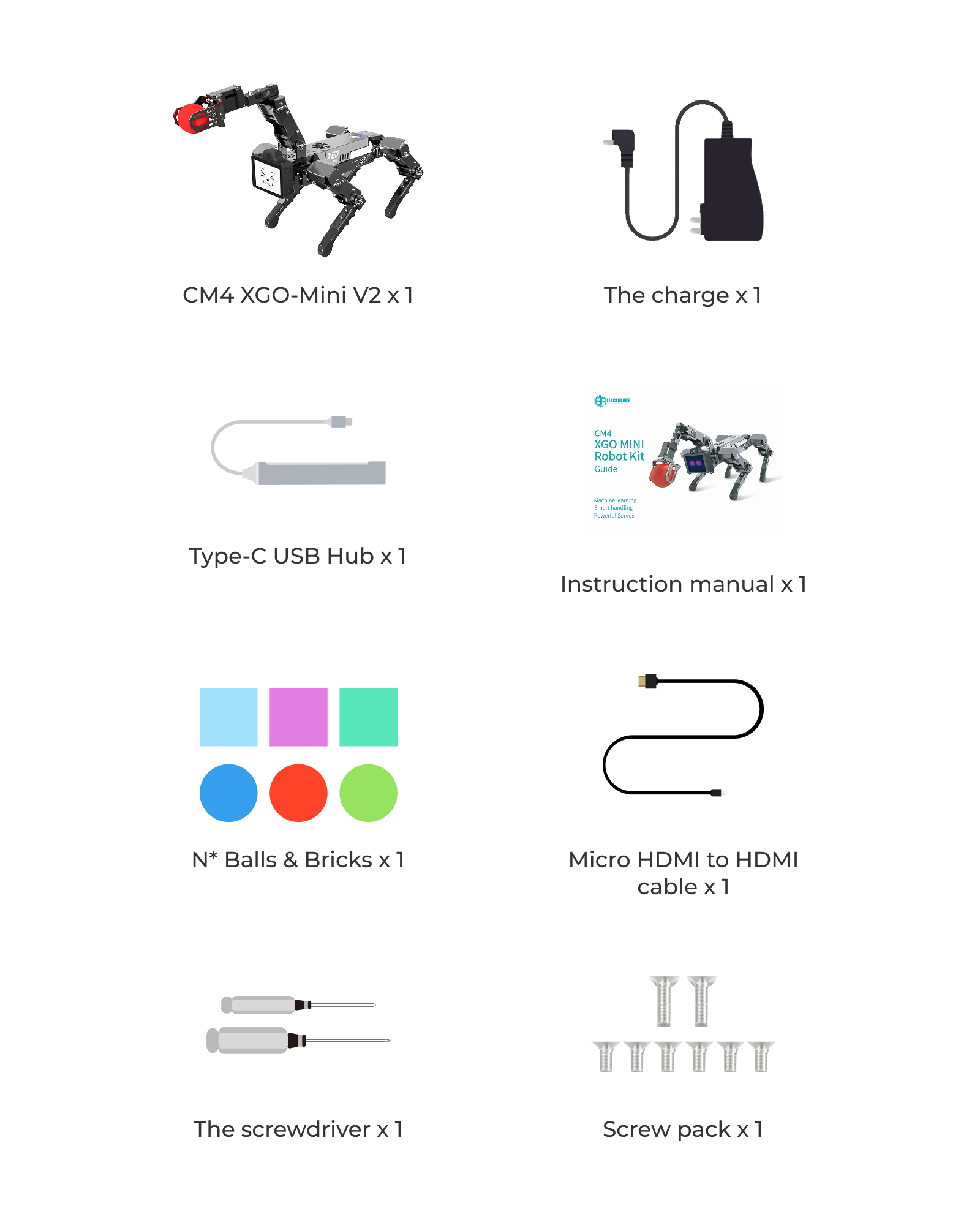

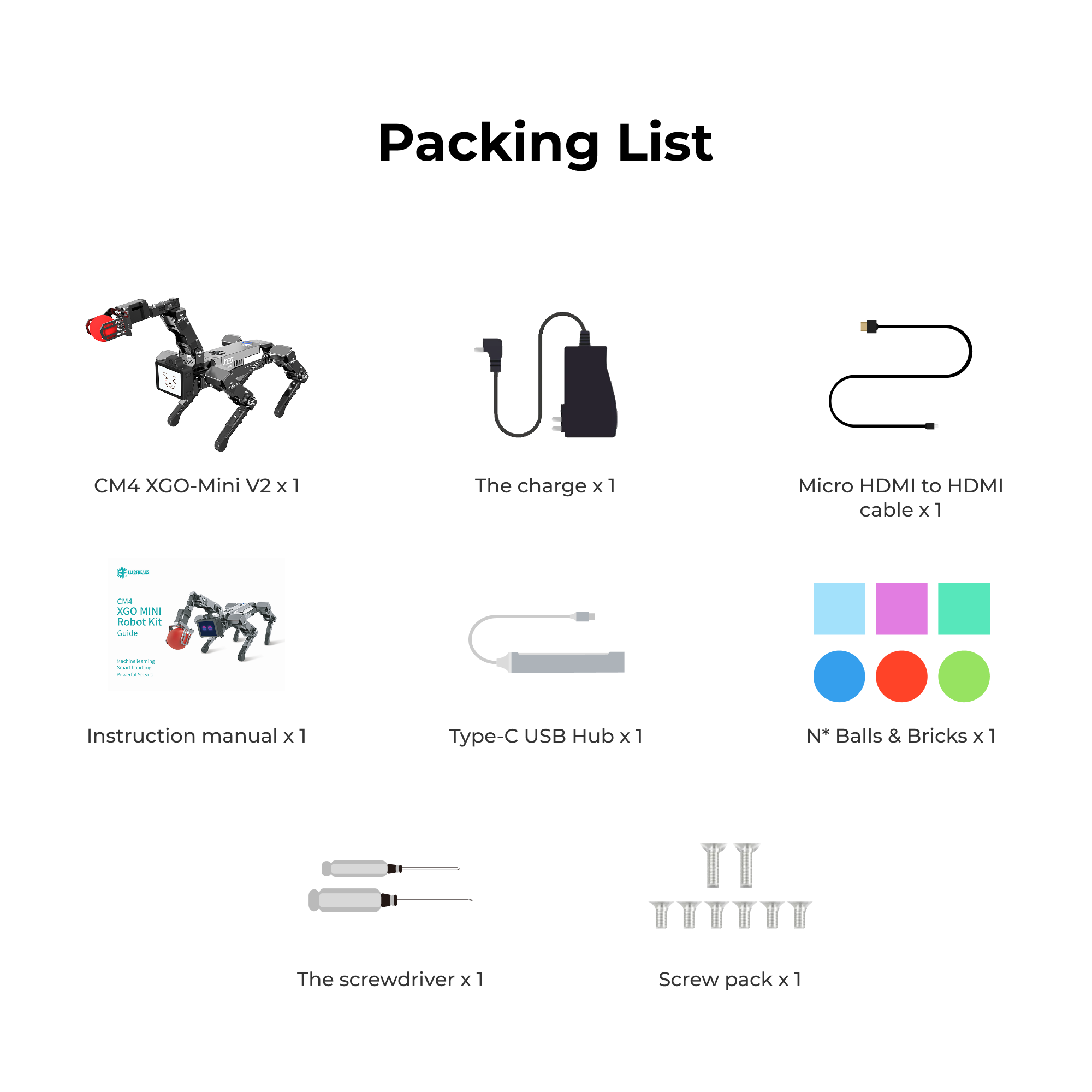

Packing List

Packing list of quadruped robot dog CM4 XGO-Mini V2 kit including robot, charger, HDMI cable, instruction manual, USB-C hub, balls and bricks, screwdriver, and screw pack for robotics learning and STEM education Packing list of quadruped robot dog CM4 XGO-Mini V2 kit including robot, charger, HDMI cable, instruction manual, USB-C hub, balls and bricks, screwdriver, and screw pack for robotics learning and STEM education

Specification

Specifications of quadruped robot dog XGO-Mini V2 including dimensions 270x150x180mm, weight 900g, Raspberry CM4 4GB host, ESP32 client, programming with Blockly, Python and ROS, 6V 4.5kg serial bus servos, built-in 18650 battery, 1.5mm aluminum alloy structure, silicone and ABS limbs, supporting app and 2.4G remote control Specifications of quadruped robot dog XGO-Mini V2 including dimensions 270x150x180mm, weight 900g, Raspberry CM4 4GB host, ESP32 client, programming with Blockly, Python and ROS, 6V 4.5kg serial bus servos, built-in 18650 battery, 1.5mm aluminum alloy structure, silicone and ABS limbs, supporting app and 2.4G remote control
