ELECFREAKS CM4 Xgo-rider

SKU: EF08418

Precio: $479 USD

You can find the introduction of this product and many educational cases in our wiki.

Link：http://wiki.elecfreaks.com/en/pico/cm4-xgo-robot-kit/product-introduction/xgo-mini-v2-product-instruction

Cantidad

En stock y listo para enviar

Frequently Bought Together

We Accept

Description

Built on the Raspberry Pi CM4 core module and integrated with ChatGPT, XGO-Rider boasts various AI features including Gesture Recognition, Face Detection, Skeleton Recognition, and more. Experienced developers will find the CM4 XGO-rider to be an ideal platform for unlocking new possibilities and exploring fresh opportunities.

Raspberry Pi Computer Module 4

XGO-CM4 is powered by a Raspberry Pi Computer Module 4 (CM4) with a quad-core Cortex-A72 CPU at 1.5GHz and a 2-inch IPS screen (320 x 240). It comes with 2GB RAM, a 32GB Micro SD card, enabling swift boot-up times and seamless operations. It supports wireless connectivity through dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.

Engineered for Strength and Resilience

CM4 XGO-Rider is designed with a robust ABS body, providing exceptional durability and impact resistance. Its bracket is made from lightweight carbon fiber, ensuring strength without added weight. Additionally, the rear cover is constructed from aviation aluminum, offering excellent resistance to wear, scratches, and corrosion.

Chatgpt-Powered Audiovisual Interaction

Built on the Raspberry Pi CM4 core module and integrated with ChatGPT, XGO-Rider boasts various AI features including Gesture Recognition, Face Detection, Skeleton Recognition, and more.

Instant communication with your XGO-Rider

Command Actions with Your Voice

Tell Your Robot What to Draw

Understanding Image

More Embedded AI Capabilities

Human Skeleton Recognition

Gesture Recognition

Human Body Tracking

Target Detection

Robot with Personality

With its programmable RGB light and vibrant 2.0-inch IPS display showcasing 35 lifelike expressions, allowing users to customize colors and create their own unique expressions, making it a truly one-of-a-kind companion.

Agile Movement

Using a 4.5KG.CM All-metal Magnetic Encoding Bus Serial Servo as the joint, FOC Hub Integrated Motor as the wheel, XGO-Rider enables agile, stable, and omni directional movement.

Hub motor

This hub motor combines a brushless motor and control circuits in one unit, with a maximum torque of 2 kg·cm. It includes an MCU and a high-precision magnetic sensor for accurate 360-degree positioning. The LQR algorithm ensures smooth starts/stops and quick responses, while over-current and stall protection improve durability.

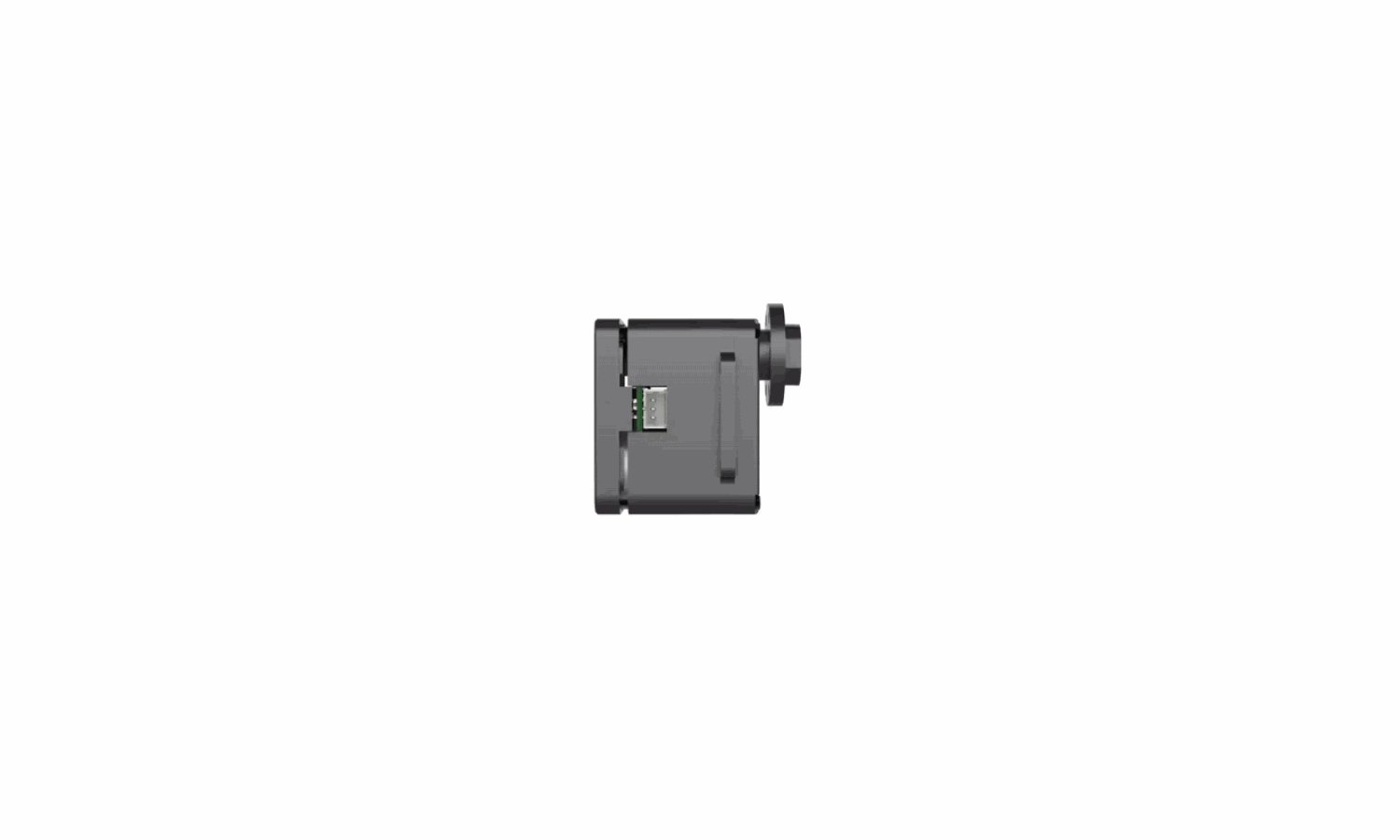

All-metal Servo

The all-metal servo combines reduction gears, sensors, and control circuits. It features PID-based closed-loop positioning for 360° control with 0.088° accuracy, plus built-in acceleration control for smooth operation.

Built-in IMU sensor

The robot features an IMU (Inertial Measurement Unit) that enables real-time balance control across varied terrain.

Plane

Slope

Open sourced for Endless Possibility

Powered by Raspberry CM4, the XGO-Rider is open-sourced, enabling users to program it using Python. Moreover, it is equipped with Robot Operating System (ROS) packages for developers. The CM4 XGO-rider is especially suitable for experienced developers to explore more possibilities.
