Description

Octopus Electronic Bricks, you can use them to build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog, and I2C/Uart interfaces. These breadboard-less firm connection are prepared to extensive modules like potentiometers, sensors, relays, servos...even buttons, just plug and play.

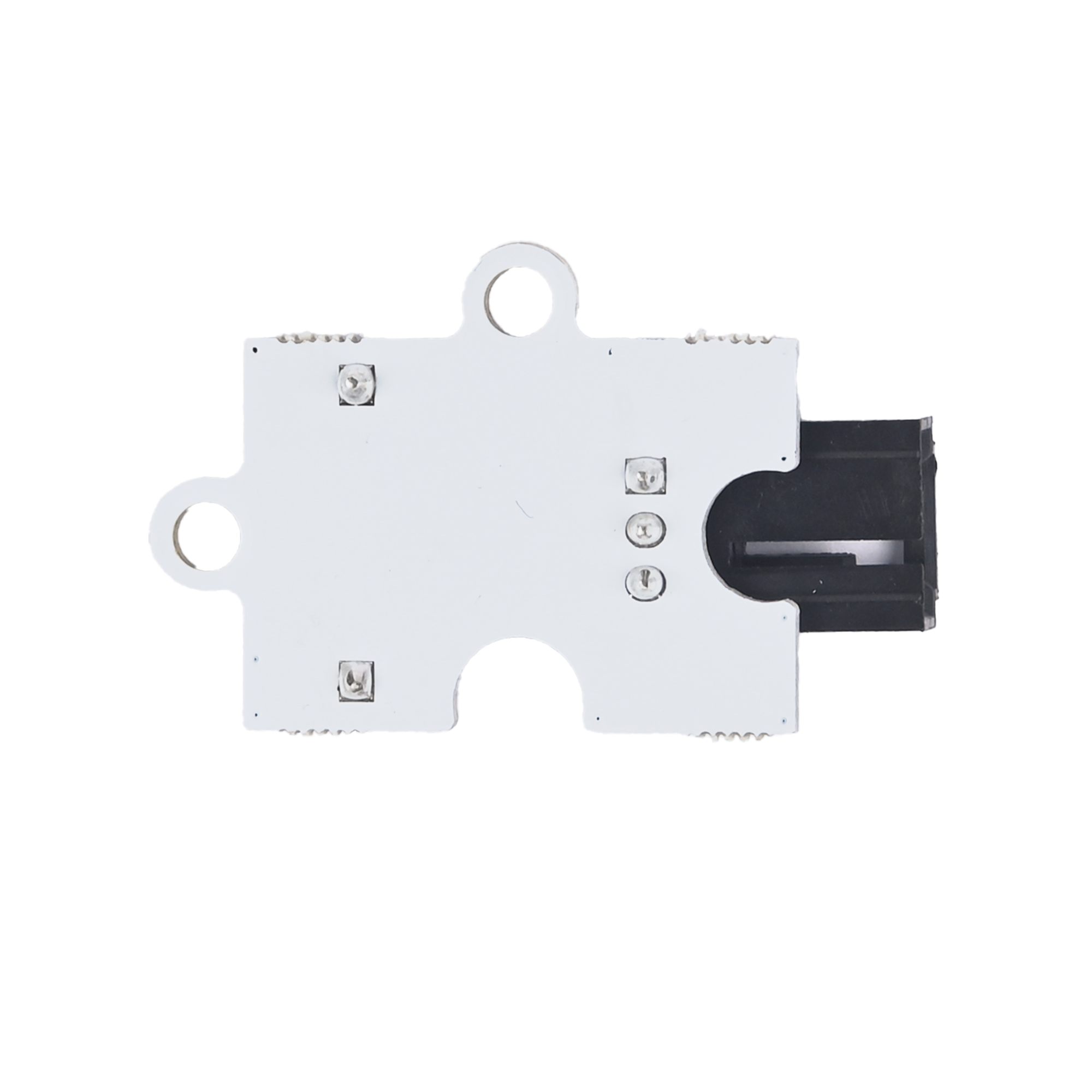

Octopus Tilt Sensor is a sensor based on a tilt switch, used together with Arduino specific sensor shield for the measurement of object angle. Three pins electronic building blocks interface: input 5V - GND. S for the detection pin.



DIMENSION

FEATURES

Operating voltage: DC 5.0V
The power supply needs: 5V
Interface type: Analog
Pin Definition: 1-Signal 2-VCC 3-GND
Fast response and High sensitivity
Simple drive circuit
Stable and long life

PACKAGE LIST

Module Quantity
Octopus Tilt Sensor Brick 1
Analog Sensor Cable 1



HARDWARE CONNECTION

Connect this tilt sensor to the P1 port on OCTOPUS:BIT.

CODE

You can see the whole program from the link
Or you can download it from the page below.

RESULTS

Rotate the sensor, micro:bit will display a heart or rectangle separately under a different statuses.
